Choosing a Suitable Five-Axis CNC Machining

When we talk about five-axis CNC machining centers, the first things that come to mind are spiral machines and complex, delicate parts. Five-axis CNC machining centers are more efficient because they operate in a more complex and flexible manner. Five-axis CNC machining centers are a type of CNC machining center that meet specific CNC machining needs. The following article will provide a deeper understanding of the processing methods of five-axis CNC machines, focusing on their advantages and disadvantages.

What is 5-Axis CNC Machining?

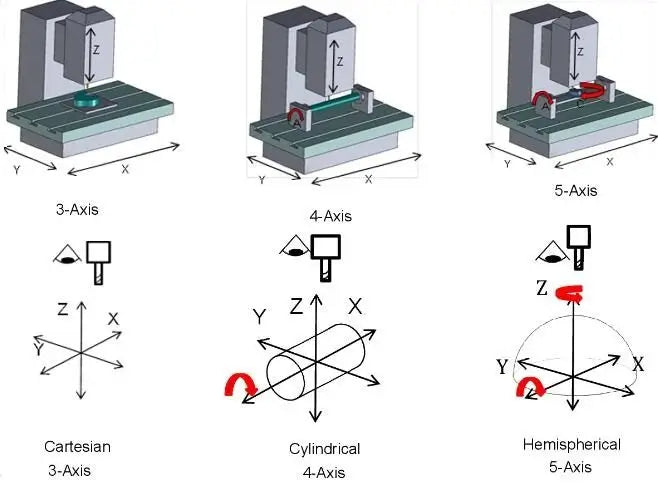

A 5-axis CNC machining center may sound complex, but its core concept is straightforward: it operates using five axes—X, Y, Z, and two rotational axes. Depending on the configuration of these rotational axes, 5-axis simultaneous CNC machine tools can be classified into the following types:

1. Dual-Spindle Swivel Head and Nodding Head Type:
   Both rotational axes are located on the tool side.

2. Dual-Rotary Table and Tilting Table Type:
   Both rotational axes are integrated into the worktable.

3. Mixed Type (One Rotary Head and One Rotary Table):
   One rotational axis is on the tool, and the other is on the worktable.

How Does 5-Axis CNC Machining Work?

5-axis CNC machining centers utilize high-precision rotational movement to overcome the limitations of traditional 3-axis machines, enabling the efficient production of complex and high-precision parts. Here’s what makes 5-axis machining stand out:

5 Reasons to Choose a 5-Axis CNC Machining Center

1. Optimal Tool Cutting Conditions
   When machining irregular surfaces, the workpiece can be rotated along multiple axes, ensuring the tool maintains an ideal cutting position throughout the process. This results in superior surface quality and extended tool life.

2. Capability to Machine Complex Parts & Avoid Custom Tools
   Components used in aerospace, marine, and other high-precision industries often have specialized geometries that 3-axis machines cannot efficiently produce. 5-axis machining eliminates the need for custom tools, reducing both tooling costs and machining complexity.

3. Reduced Process Steps and Fewer Setups
   Many multi-sided parts require tight tolerances and dimensional relationships across different faces. Each manual repositioning in a 3-axis setup introduces potential errors and increases scrap risk. A 5-axis machine completes such parts in a single setup, improving accuracy, saving time, lowering fixture costs, and minimizing floor space and maintenance.

4. Simplified Production Management & Improved Efficiency
   With the ability to perform complete machining in one setup, 5-axis CNC significantly shortens the production process, simplifying planning and scheduling. The more complex the part, the more pronounced these advantages become.

5. Shortened R&D Cycle for New Products
   5-axis machining effectively addresses challenges related to accuracy and lead time during new product development, drastically reducing the R&D cycle and increasing the success rate of new product introductions.

The Right 5-Axis CNC Machining Center for You — XTJ

As highlighted above, 5-axis CNC machining centers offer numerous advantages—most notably, the ability to produce high-precision components with exceptional efficiency and quality. While the operational cost of a 5-axis machine is higher than that of a 3-axis system, the benefits far outweigh the difference.

If you are manufacturing parts for aerospace, marine engineering, or other high-precision industries, XTJ is your ideal partner. Equipped with advanced 5-axis simultaneous CNC machine tools and staffed by experienced professionals, XTJ delivers machining excellence tailored to your requirements.

Welcome to contact XTJ for a quotation or technical consultation.
