Key Benefits of 5-Axis CNC Machining for Modern Shops

TL;DR

5-axis CNC machining offers significant advantages over traditional 3-axis methods by enabling the production of highly complex parts with greater precision and superior surface finishes. The core benefits of 5-axis CNC machining stem from completing a job in a single setup, which dramatically reduces production time, minimizes the risk of human error from repositioning, and increases overall efficiency. This technology unlocks new geometric possibilities for engineers and delivers a strong return on investment through faster cycle times and lower per-part costs.

Core Production Advantages: Speed, Efficiency, and Precision

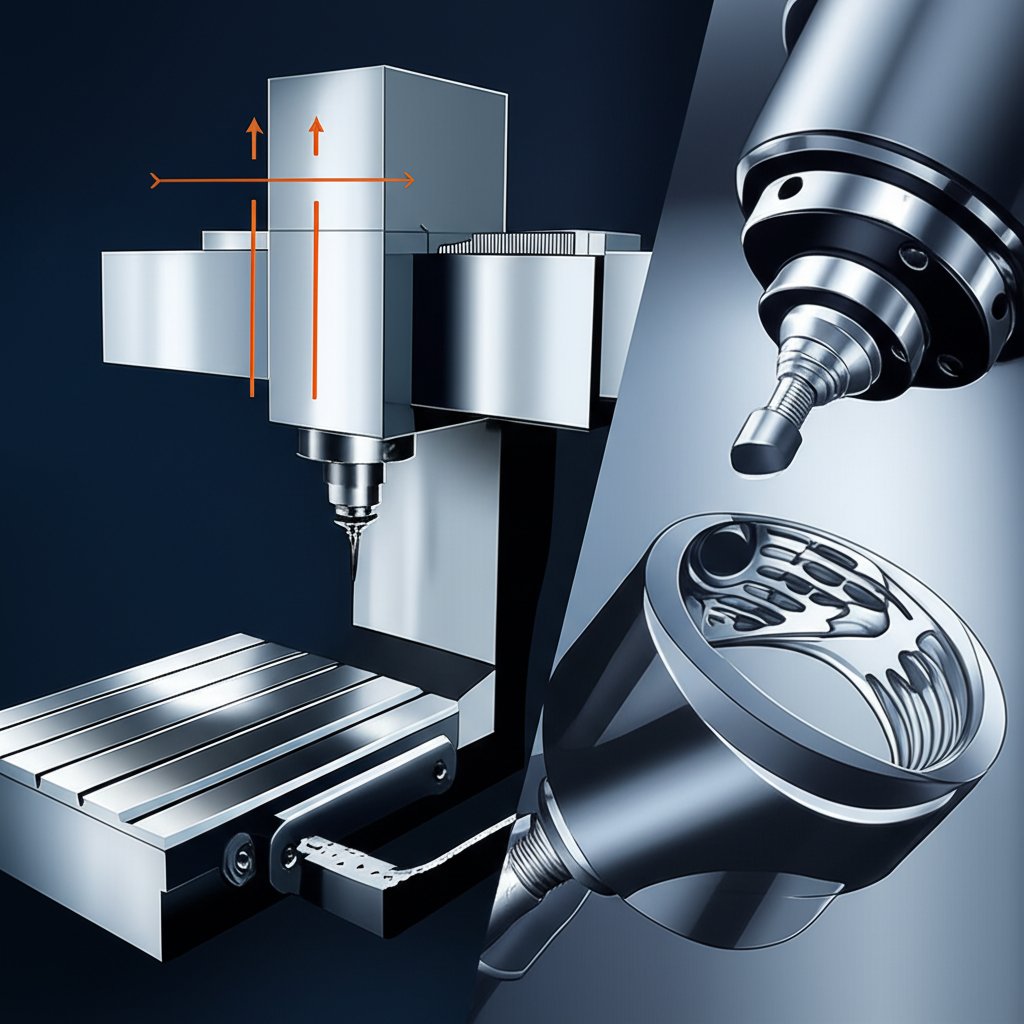

One of the most compelling arguments for adopting 5-axis technology is the transformative impact it has on core production metrics. Unlike their 3-axis counterparts, which are limited to linear movements, 5-axis machines introduce two rotational axes. This capability allows the cutting tool to approach a workpiece from five different sides without interruption. The result is a dramatic reduction in the number of setups required to complete a part. As detailed in guides from manufacturing experts, this single-setup approach is the foundation of its primary benefits: speed, efficiency, and precision.

Reduced setup time is a direct contributor to increased production speed. Traditional machining often involves stopping a machine to manually re-clamp and re-orient a part to access different features. This process is not only time-consuming but also introduces opportunities for error. A 5-axis machine eliminates most of this downtime, allowing for continuous operation that significantly shortens lead times. By minimizing manual intervention, shops can increase spindle uptime, meaning the machine spends more time cutting and less time idle. This efficiency gain translates directly into higher throughput and a more profitable operation.

Furthermore, precision is inherently enhanced when a part remains in a single fixture. Every time a workpiece is moved, there is a risk of slight misalignment, which can compromise tight tolerances. By machining complex geometries in one continuous operation, 5-axis technology ensures a higher degree of accuracy and repeatability. This is particularly crucial for industries like aerospace and medical manufacturing, where components must meet stringent quality standards. The ability to maintain positional accuracy across multiple features without re-fixturing is a key advantage that sets 5-axis machining apart.

Unlocking Advanced Capabilities: Complex Geometries and Superior Finishes

Beyond pure efficiency, 5-axis CNC machining unlocks a new realm of manufacturing possibilities, enabling the creation of parts with complex geometries that are difficult, if not impossible, to produce on 3-axis machines. The ability to tilt the tool or the workpiece allows the machine to maintain an optimal cutting position relative to the part's surface at all times. This continuous adjustment is what makes it possible to machine smooth, contoured surfaces, undercuts, and intricate details in a single, fluid operation. This capability grants engineers unprecedented design freedom, removing many of the constraints imposed by traditional manufacturing methods.

This technology is particularly transformative for industries that rely on highly sophisticated components. As noted by industry experts at Methods Machine Tools, sectors such as aerospace, automotive, and medical manufacturing depend on 5-axis machines to produce parts like turbine blades, impellers, and custom orthopedic implants. These components often feature complex curves and angles that must be machined with extreme precision to function correctly. The ability to fabricate such parts in one setup not only ensures accuracy but also maintains the structural integrity of the final product.

Another significant advantage is the superior surface finish that 5-axis machining can achieve. Because the tool can be tilted, it's possible to use shorter, more rigid cutting tools. Shorter tools are less prone to vibration and deflection during high-speed cutting, which results in a smoother, cleaner surface. This high-quality finish can often eliminate the need for secondary polishing or finishing processes, saving additional time and labor costs. The machine's ability to follow a continuous toolpath along a contoured surface, rather than making a series of stepped cuts, also contributes to a flawless finish without the tool marks often left by 3-axis operations. For businesses looking to produce complex prototypes, formative manufacturing services can be an invaluable resource. Partners like XTJ offer expertise in Design for Manufacturability (DFM) and can help leverage advanced techniques to accelerate product development, a key consideration when working with intricate 5-axis designs. You can find more information about their services for high-quality rapid prototypes at XTJ's formative manufacturing services.

• Aerospace: Production of complex components like blisks (bladed disks), impellers, and structural airframe parts.
• Medical: Manufacturing of custom implants, prosthetics, and surgical instruments with organic, ergonomic shapes.
• Automotive: Creation of high-performance engine components, intricate molds for interior parts, and prototype models.
• Energy: Machining of turbine blades for power generation and complex parts for oil and gas exploration equipment.

The Business Case: Evaluating Costs, Challenges, and ROI

While the benefits are clear, adopting 5-axis technology represents a significant business decision that requires careful evaluation. The initial investment for a 5-axis machine is considerably higher than for a 3-axis machine, a factor that can be a barrier for smaller shops. However, viewing the cost solely through the lens of the initial purchase price is shortsighted. The true value lies in the long-term return on investment (ROI), which is driven by substantial gains in efficiency, capability, and competitiveness.

The primary challenge associated with 5-axis machining is not the hardware itself, but the increased complexity of programming. Creating toolpaths that utilize five axes simultaneously requires sophisticated CAM (Computer-Aided Manufacturing) software and skilled programmers who understand the nuances of multi-axis motion. This learning curve and the need for specialized training are often cited as disadvantages. However, modern CAM software and machine controls, such as those highlighted by Okuma, have become increasingly intuitive, with features designed to simplify programming and reduce the potential for errors.

The ROI for a 5-axis machine is realized through several key areas. Reduced labor costs per part, faster cycle times, and minimal scrap from setup errors contribute directly to the bottom line. Perhaps more importantly, 5-axis capability allows a shop to take on higher-value, more complex jobs that were previously out of reach. This ability to expand into new markets and serve more demanding clients can be a powerful driver of growth and profitability, justifying the initial investment over time.

Is 5-Axis Machining Right for Your Shop? A Checklist

To determine if the investment is worthwhile, consider these questions:

1. Are you frequently turning down jobs due to part complexity or tight tolerances?
2. Do a significant percentage of your current parts require three or more setups on a 3-axis machine?
3. Is the cost of scrap due to setup errors impacting your profitability?
4. Are you looking to expand your business into more demanding industries like aerospace, medical, or defense?
5. Are faster lead times and reduced cost-per-part critical to staying competitive in your market?

Answering yes to several of these questions strongly indicates that the benefits of 5-axis CNC machining could provide a substantial return on investment for your business.

Frequently Asked Questions

1. Is 5-axis CNC worth the investment?

For many shops, yes. While the initial cost is higher, the investment is often justified by a significant ROI. This return is generated through drastically reduced setup times, faster cycle times, and lower labor costs per part. Furthermore, the ability to produce more complex, higher-value components opens up new revenue streams and provides a strong competitive advantage that can lead to long-term growth.

2. What are the disadvantages of a 5-axis CNC machine?

The primary disadvantages are the higher initial cost of the machine and the complexity of programming. Operating a 5-axis machine effectively requires advanced CAM software and highly skilled programmers to create the intricate toolpaths. There can also be a steeper learning curve for operators and potentially higher maintenance costs due to the machine's increased mechanical complexity.

3. What are the main advantages of a 5-axis machine over a 3-axis machine?

The key advantages are the ability to machine complex shapes in a single setup, which drastically improves efficiency and accuracy. It allows for shorter, more rigid tools, resulting in better surface finishes and faster material removal rates. A 5-axis machine provides greater design freedom for engineers and can produce parts for demanding industries like aerospace and medical that are often impossible to make on a 3-axis machine.
