Brass Pipe Or Brass Tube? The Sizing Rules You Must Know

Brass Pipe Fundamentals and Where It Fits Best

What brass pipe is and where it excels

When you’re planning a plumbing, architectural, or industrial project, choosing the right piping material can feel overwhelming. So, when does a brass pipe make sense? Brass pipe refers to seamless or welded cylindrical stock made from copper–zinc alloys. It’s a go-to solution for potable water lines, decorative rails, low-pressure steam, HVAC condensate drains, and instrumentation lines, thanks to its unique blend of corrosion resistance, moderate strength, and easy machinability. Imagine a brass water pipe running through a historic building or a brass plumbing pipe forming the backbone of a reliable water system—those scenarios highlight the material’s strengths.

Choose brass pipe when you need corrosion resistance, moderate strength, attractive finish, and easy machinability in low-to-medium pressure systems.

Brass pipes are favored because they resist corrosion, especially in potable water and outdoor environments, and they’re easier to cut, thread, or solder than many alternatives. The copper–zinc alloy blend can be tailored for specific needs: yellow brass for outdoor or decorative use, red brass for higher pressure or hot water systems. However, performance hinges on the right combination of alloy, temper, wall thickness, and joining method. For example, a thicker wall is crucial when threading, while a thinner wall may suffice for soldered joints if local codes permit.

Common mistakes when specifying brass

Sounds complex? It doesn’t have to be—if you know what to avoid. Here are the most frequent pitfalls:

• Ordering by outside diameter (OD) when Nominal Pipe Size (NPS) is required
• Mixing pipe and tube fittings, or mismatching brass fittings with incompatible pipe types
• Overlooking dezincification and lead content—especially critical for potable water applications
• Ignoring local code approvals and certifications
• Underestimating wall thickness needed for threading or pressure requirements

For example, using the wrong brass fittings or failing to check compatibility with copper or galvanized pipe can result in leaks or premature failure (Atlas Metal Industries).

When brass tubing may be the better choice

Not every project calls for a traditional brass pipe. If your application needs precise outside diameters, tight bends, or a particular decorative finish—think architectural railings or hobby projects—brass tubing may be the smarter pick. Tubing is measured by its exact OD and wall thickness, making it ideal for custom fabrication and ornamental work, where the look and fit matter as much as function.

Mapping search intent: How people use brass pipes

Why are you searching for brass pipes today? Here are common use scenarios—and where you’ll find more detail later in this guide:

• Plumbing: Water supply, hot water distribution—see sizing, joining, and code compliance sections
• Marine: Corrosion-resistant lines for boats—learn about alloy selection and corrosion management
• Architectural: Decorative rails and trims—explore finish options and tubing alternatives
• Hobby/DIY: Model building, custom furniture—check out measurement and cutting tips

Performance ratings for brass piping—like allowable pressure or temperature—depend on the alloy, wall thickness, and joining method. If you need specific numbers, see our pressure methodology section, where we walk through deriving ratings based on the pipe’s material and construction.

How to choose the right brass pipe

Start by defining your application: What fluid will flow through the pipe? What are the pressure and temperature demands? Is the environment corrosive or exposed to weather? Next, check local code requirements—especially for potable water or fire safety. Only then should you select the brass alloy and joining method that best balance performance, cost, and appearance.

Remember, the right brass pipe or brass plumbing pipe can deliver decades of reliable service—but only if you match the material to your project’s real-world needs.

Brass Pipe Versus Brass Tube Explained Clearly

How to Tell Pipe from Tube in Seconds

Ever picked up a piece of brass and wondered, “Is this a pipe or a tube?” You’re not alone. The confusion is common, but the distinction is crucial—especially when it comes to ordering, installing, or matching with brass threaded fittings. Here’s how to break it down in plain English:

• Brass pipe is sized by Nominal Pipe Size (NPS)—a standardized system based on approximate inside diameter (ID), not the actual outside diameter (OD).
• Brass tube is measured by its exact outside diameter and wall thickness. What you see is what you get—no conversion charts needed.

Imagine you’re building a custom railing or a precise instrument panel. You’ll want the consistency of brass tube and fittings, where every millimeter counts. But if you’re threading water lines or matching to existing plumbing, you’re in the realm of pipe, where NPS rules.

Which Fittings Match Pipe Versus Tube?

Sounds complex? It’s actually straightforward once you know the joining methods:

• Brass pipe typically uses threaded or soldered joints. Think of classic plumbing installations—this is where brass threaded fittings shine.
• Brass tube is joined with compression, brazed, or push-fit connectors. These are favored for tight bends, ornamental details, or when you need a seamless look.

Let’s make it visual with a side-by-side comparison:

Finish and Form Options for Architectural Work

Here’s where tubes really shine. Need a brushed or polished look for a display case, or a square profile for a modern staircase? Brass tubes come in a wide variety of forms and finishes—round, square, or rectangular—making them ideal for custom architectural details. For example, 1 2 brass tube or 3 8 brass tubing are popular choices for both hobby and professional applications where precision and appearance matter.

And don’t forget: tubes can be bent or shaped more easily than pipes, giving you more flexibility in design. Plus, with brass tube stock, you can order exactly what you need—no more, no less.

Checklist: What to Verify Before Buying

• Measure the OD with calipers (don’t rely on a tape measure for precision)
• Check wall thickness or schedule—especially important for pressure or threading
• Confirm the type of fitting: pipe thread, compression, or push-fit
• Make sure the supplier’s standard matches your project spec (ASTM B43 for pipe, ASTM B135 for tube)

If your design calls out exact OD and wall, you are specifying tube—not pipe.

Visual Cues and Smart Practices

You’ll notice that pipe sizing follows NPS tables, which can be confusing if you’re expecting the OD to match the nominal size. Tube sizing is always exact. To avoid mismatches during installation, keep a simple measuring card or a set of calipers at your workbench. This small step can save hours of frustration and prevent costly returns—especially when working with custom brass tube and fittings or specialty sizes like 1 2 brass tube.

Understanding the difference between brass pipe and brass tube ensures your project gets off to the right start. Up next, we’ll help you pick the right alloy and finish for your application, so your installation is not just functional—but built to last.

Alloy Selection and the Role of Red Brass

Choosing Brass Alloys for Plumbing and Architecture

Ever wondered why some plumbing lasts for decades while other installations corrode or fail early? The secret is in the alloy. Not all brass pipe is created equal—each alloy blend offers a unique combination of strength, corrosion resistance, machinability, and suitability for potable water. So, how do you confidently choose the right brass for your project?

1. Define the medium: Will your brass piping carry potable water, air, steam, or something more aggressive?
2. Identify pressure and temperature requirements: High-pressure steam needs a different alloy than low-pressure decorative applications.
3. Assess corrosion risks: Is your installation exposed to chlorides, ammonia, or soil? Dezincification and general corrosion are real concerns.
4. Decide on joining method: Will you thread, solder/braze, or use compression fittings? Some alloys handle heat or thread cutting better than others.
5. Select an alloy that meets code and performance: Always check for local approval and low-lead requirements, especially for potable water lines.

Understanding Red Brass and When to Use It

Let’s get specific—what is red brass, and why is it so often recommended for plumbing and architectural work? Red brass, often designated as C23000 or 85/15 brass, contains about 85% copper and 15% zinc. This high copper content gives it a warm, reddish hue and makes it exceptionally resistant to corrosion, especially in potable water systems and mild industrial settings. You’ll find red brass pipe and red brass fittings in applications where longevity and formability matter, such as municipal water mains, decorative handrails, and exposed piping in architectural design.

Compared to yellow brasses (with higher zinc), brass red alloys like C23000 offer improved ductility, making them easier to bend or shape without cracking. They’re also less prone to dezincification—a form of selective corrosion that can weaken yellow brasses in certain water chemistries. However, always verify the lead content and confirm that your chosen alloy meets potable-water codes if safety is a concern.

Finish Selection and Dezincification Awareness

Beyond function, the finish of your brass matters—especially in visible installations. Will your project benefit from a polished, mirror-like surface or a subtle brushed look? Polished finishes are eye-catching and classic, while brushed or satin finishes hide fingerprints and minor scratches. For maximum durability, lacquered coatings can protect your brass from tarnish and environmental wear, especially in architectural or marine settings.

Dezincification is a risk in any environment with aggressive water or soil. If your project is exposed to such conditions, consider alloys specifically designed to resist this process, often with small additions of arsenic, phosphorus, or antimony. These inhibited brasses are popular for heat exchangers and condenser tubes but can be specified for piping if needed.

Brass Alloy Property Overview

Note: For precise property values and full compliance, always consult the relevant ASTM or product datasheet for your chosen alloy. Values above are typical ranges for general guidance.

Start with environment and joinery, then pick the brass alloy that meets both performance and code.

Imagine specifying a beautiful brass red pipe for a historic building’s water main, then realizing too late that the alloy doesn’t meet your city’s lead-free requirements. Or, choosing a highly machinable yellow brass for a decorative railing, only to have it tarnish or corrode in an outdoor setting. A little homework up front—defining the use case, environment, and joining method—ensures your brass pipe or fittings deliver on both looks and performance.

With your alloy selected, you’re ready to tackle sizing and measurement—the next step in getting your brass installation right the first time.

Sizing and Measurement Made Practical

How to Measure OD, ID, and Wall Thickness

Ever been stumped by a pipe label that doesn’t match your tape measure? You’re not alone. Brass pipe sizing can be tricky—especially when you’re dealing with terms like Nominal Pipe Size (NPS), actual outside diameter (OD), and wall thickness. Here’s how to take the guesswork out of the process and ensure your 1 2 brass pipe or 2 brass pipe fits perfectly, every time.

1. Measure the actual OD: Use a caliper for accuracy. For example, a typical 1/2 brass pipe has an OD of 0.84 inches.
2. Determine wall thickness: Measure with your caliper or an ultrasonic gauge. Wall thickness varies by schedule (e.g., Sch 40, Sch 80).
3. Compute the inside diameter (ID): Use the formula: ID = OD − 2 × wall thickness. For example, a 1 1/2 brass pipe (NPS 1-1/2, Sch 40) has an OD of 1.9" and a wall thickness of 0.15", so ID ≈ 1.6".
4. Match to NPS tables: With your OD and wall in hand, check a standard NPS chart to confirm the nominal size. Don’t assume—always verify.

Why is this so important? Imagine ordering a 1 brass pipe by OD, only to discover it’s not compatible with your brass fittings. Or, worse, ending up with a pipe that’s too thin to safely thread or too thick to fit your application. Taking a few extra minutes to measure can save hours of frustration and costly returns.

Nominal Pipe Size Versus Actual Dimensions

Sounds confusing? Here’s a quick breakdown. The Nominal Pipe Size (NPS) is a standard naming system that doesn’t always match the actual OD or ID. For instance, a 2 inch brass pipe (NPS 2, Sch 40) actually measures 2.375" OD, not a true 2 inches. The wall thickness then determines the ID. This is why you’ll often see odd numbers when you measure with a caliper.

Threading Allowances and Wall Selection

Planning to thread your brass pipe? Here’s a key tip: threading removes material from the wall, so you need enough thickness to maintain joint integrity. Sch 40 is the standard for most threaded applications, while Sch 80 offers extra strength for high-pressure or industrial settings. If you’re soldering or brazing, thinner walls (within code) may be acceptable, as the joint doesn’t rely on thread engagement. For example, a 1 2 brass pipe with Sch 40 wall is ideal for threading, while a thinner wall might suffice for soldered water lines.

Always check the applicable manufacturing specification—like ASTM B43 for brass pipe—to ensure your chosen size and wall combination is compliant with your project’s requirements. This is especially critical for applications where code adherence and safety are non-negotiable.

Always confirm nominal size with a caliper check—don’t rely on visual estimates.

Still feeling unsure? Remember, most fitting failures and leaks trace back to sizing errors. Take your time, measure twice, and consult the right charts. Up next, we’ll show you how to make those joints leak-free, whether you’re cutting, threading, or soldering your brass pipe installation.

Installation and Joining Methods That Work

Clean Cuts and Burr-Free Prep for Leak-Free Joints

When you’re ready to assemble a brass pipe system, getting the basics right makes all the difference. Sounds complex? It isn’t—if you follow a few proven steps. Clean, accurate preparation is the foundation of every leak-free joint, whether you’re using brass pipe fittings, compression connectors, or soldered joints. Here’s how to get it right from the start:

• Measure and mark: Use a tape measure and marker to define the cut point. Precision here avoids misalignment later.
• Cut the pipe: Use a tube cutter or a fine-tooth saw designed for brass. This ensures a straight, distortion-free cut.
• Deburr inside and outside: After cutting, use a deburring tool to remove sharp edges and burrs. This step is crucial—burrs can prevent a tight seal and even damage brass plumbing fittings.
• Clean the pipe: Wipe the ends with a clean cloth or pipe cleaner to remove dust, oil, or residue. For soldering, use an emery cloth or wire brush to ensure a bright, oxide-free surface.
• Dry fit and mark: Assemble the joint without sealant to check for alignment. Mark the depth to ensure proper insertion during final assembly.

When to Thread Versus Solder or Braze

How do you decide between threading, soldering, or compression? It depends on your application and the specific brass pipe connectors used. Threaded joints are standard for water, gas, and HVAC lines, while soldered or brazed joints are preferred for copper pipe with brass fittings in potable water or where vibration resistance is key.

• Threaded joints: Wrap male threads with Teflon tape or apply pipe dope. Hand-tighten the fitting, then finish with a wrench—stop when snug, but don’t over-torque.
• Soldered joints: Clean both pipe and fitting thoroughly. Apply flux to both surfaces, assemble, and heat the joint evenly with a propane torch—focus more heat on the denser brass fitting. Once the flux sizzles, apply solder until it wicks fully into the joint. Let cool before handling.
• Brazed joints: Use a higher-temperature filler metal and follow manufacturer recommendations for both brass and copper. Always check datasheets for compatible alloys and temperature ranges.
• Compression fittings: Slide the nut and ferrule onto the pipe, insert into the fitting, and tighten the nut evenly. Avoid over-tightening, which can deform the pipe or ferrule.

When joining brass to galvanized pipe or other dissimilar metals, always use dielectric unions to prevent galvanic corrosion. This is especially important in mixed-material plumbing systems.

Compression Fittings and Vibration Considerations

Compression fittings are a popular choice for quick, reliable connections—especially where disassembly may be needed. They’re ideal for smaller brass threaded pipe or instrumentation lines. But here’s the catch: vibration can loosen compression joints over time. If your system is exposed to vibration (think pumps or HVAC), consider soldered or threaded joints for added security.

Common Mistakes to Avoid

• Over-heating during soldering or brazing, which can weaken brass fittings plumbing and damage adjacent joints
• Mixing incompatible fluxes or sealants, leading to poor adhesion or chemical reactions
• Cross-threading when connecting brass to galvanized pipe—start by hand, and never force a misaligned thread
• Skipping thread sealant or using too much, which can cause leaks or blockages
• Ignoring proper torque—over-tightening can strip threads, while under-tightening leads to leaks

Tips for Transitions and Code Compliance

When transitioning from copper pipe with brass fittings to other materials, always check for galvanic compatibility. Use dielectric unions or insulating gaskets as required by code to prevent corrosion and premature failure. For outdoor installations, select corrosion-resistant coatings or protective wraps to extend the life of your connections.

If you’re soldering or brazing, always verify the recommended temperature range on the filler metal’s datasheet or manufacturer instructions. For plumbing code compliance, use only approved fluxes and solders for potable water applications.

Cleanliness, correct clearances, and controlled heat are the three pillars of reliable brass joints.

Mastering these installation and joining methods ensures your brass pipe system stands the test of time—leak-free and code-compliant. Next, we’ll demystify pressure and temperature ratings so you can specify every joint with confidence.

Pressure and Temperature Rating Methodology for Brass Pipe Systems

How Ratings Are Established

Ever wondered how to confidently specify a brass pipe for water, air, or steam without over- or under-engineering your system? It starts with understanding how pressure and temperature ratings are determined. The process may seem technical, but with the right steps, you’ll avoid costly mistakes and ensure safety.

Let’s break it down:

• Identify the alloy and temper: Most plumbing and mechanical brass pipes use red brass (C23000 or 85% copper/15% zinc), but check your project specs for alternatives like 272 brass or lead-free alloys.
• Confirm the manufacturing standard: For piping, ASTM B43 is the common reference for seamless red brass pipe. Make sure your product matches the required standard for your application.
• Locate the base pressure rating: Refer to authoritative tables for allowable working pressure based on pipe size, wall thickness, and temperature. For example, a 1/2-inch red brass pipe (regular wall) is rated for 900 psi at up to 200°F, but this drops as size increases or temperature rises.
• Apply temperature derating: Brass loses strength at higher temperatures. For copper-based alloys, use a derating factor—at 200°F, the factor is typically 0.80, so multiply the base rating by 0.80 to get the safe working pressure.
• Verify the joining method: Threaded, soldered, or compression joints each have their own limits. Threaded joints may reduce pressure capacity due to wall thinning at threads. Always use the lower rating between the pipe and the joint method.

Temperature Derating and Joint Method Effects

Imagine running a brass pipe for water at 300°F. The base pressure rating from the table may look high, but temperature derating can significantly lower it. For example, a 1-inch conventional red copper pipe has a base pressure rating of 630 psi at 100°F. At 300°F, its allowable pressure is reduced to approximately 491 psi (630 psi × 0.78) based on the industry standard derating factor of approximately 0.78.

Here’s a practical example using a derating factor:

• Base rating (at 100°F): 630 psi
• Derating factor at 300°F: 0.78 (for copper alloys)
• Allowable pressure at 300°F: 630 psi × 0.78 ≈ 491 psi

But don’t stop there: if you’re using threaded ends, check the table for threaded pipe values—they can be lower due to reduced wall thickness. Soldered and brazed joints may have their own temperature and pressure limits, so always consult manufacturer data for brass water pipe fittings and connections.

Water, Air, and Low-Pressure Steam Considerations

Not all media are created equal. Water, air, and low-pressure steam each place different demands on your brass piping system. For example, cyclic loads from steam or vibration from compressed air can lower the effective pressure rating. It’s wise to include a safety factor or consult a professional if your system will see frequent pressure changes or harsh environments.

Use this table as a practical worksheet to organize your data and ensure your system is safe:

Tip: Always verify the lowest-rated component—if your brass connections or fittings are rated lower than the pipe, use the lower value. For compression fittings, ratings can range from 400 to 800 psi for water, depending on size and manufacturer.

Factors That Can Reduce Capacity

• Thread cutting: Reduces wall thickness at the joint, lowering pressure rating.
• Cyclic loads and vibration: Fatigue can weaken brass pipe for water or air over time.
• Corrosion allowance: In aggressive environments, reduce allowable pressure to account for wall thinning.

System pressure rating is only as strong as the weakest component—including fittings and joints.

By following this methodology, you’ll confidently specify the right brass water pipe fittings, pipe sizes, and joint methods for safe, code-compliant installations. Next, we’ll walk through procurement checklists so you can move from plan to purchase order with zero confusion.

Procurement and RFQ Checklist for Brass Pipe Projects

How to Write a Clear RFQ for Brass Pipe and Fittings

When you’re ready to move from design to purchase, the last thing you want is confusion, delays, or costly rework. Sounds familiar? Imagine specifying a brass fitting or a set of metric brass pipe fittings, only to receive the wrong alloy or finish. That’s why a clear, detailed request for quotation (RFQ) is your best tool for smooth procurement and reliable brass sales—whether you’re sourcing from a local distributor or a global supplier.

Here’s a practical, copy-paste RFQ checklist to help you cover all the essentials:

• Material family (brass) and specific alloy (e.g., C23000, C36000)
• Manufacturing standard (e.g., ASTM B43 for pipe, B135 for tube)
• Form (pipe or tube)
• Size (Nominal Pipe Size or exact OD), wall/schedule, and required length
• Quantity and cut tolerance (e.g., ±1/8")
• Finish (mill, polished, lacquered, etc.)
• Joining prep (threaded ends, plain, or beveled)
• Required certifications (material test report, potable-water compliance if needed)
• Inspection/tolerance criteria (e.g., dimensional checks, surface finish requirements)
• Special notes (deburr, cap/plug ends, protective wrap for shipping)
• Delivery address and required lead time

Including these details ensures your suppliers understand exactly what you want, minimizing back-and-forth and reducing the risk of errors—especially if you’re sourcing from platforms like brass pipe home depot or working with international partners.

Supplier Evaluation: What to Look For

How do you know if a supplier can deliver quality brass fitting products on time? Before you buy brass or commit to a large order, use this supplier evaluation checklist:

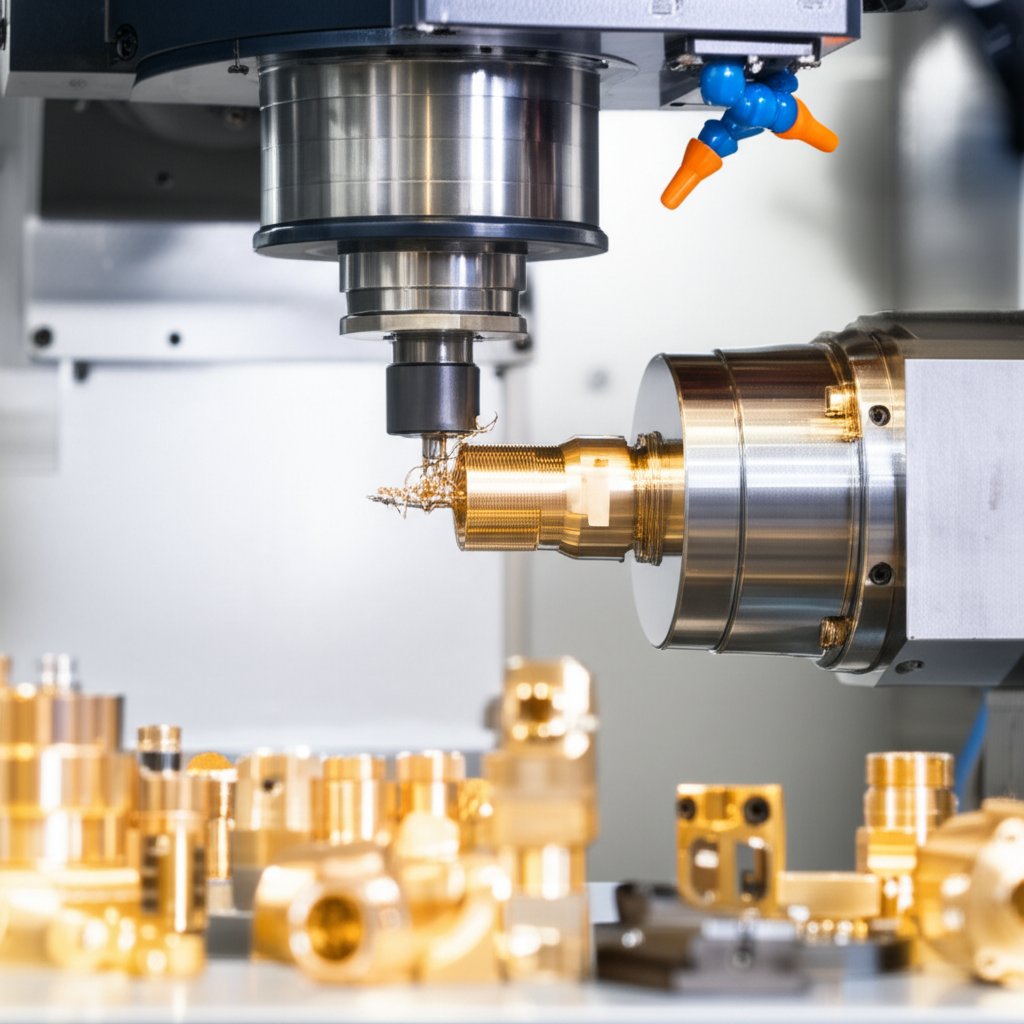

• Capability for precision cutting, threading, and custom fabrication
• Stock depth for rapid delivery (especially for popular items like 1 inch brass pipe fittings)
• Documented quality assurance system (ISO or equivalent)
• Ability to provide heat/batch traceability and material certificates
• Responsive communication and clear documentation
• Experience with export documentation and international shipping (if applicable)

For larger or ongoing projects, consider requesting references, case studies, or even a site visit to verify the supplier’s reliability and production standards.

Comparing Suppliers: Capabilities and Lead Times

Imagine you need both standard and metric brass pipe fittings for a global project. Use a comparison table like the one below to organize your options and make an informed decision:

Always ask for up-to-date brass fittings price lists and check that the supplier can meet your quantity and delivery needs before finalizing your order.

Delivery, Packaging, and Finish Notes

Don’t overlook the final details—proper packaging and finish requests can make or break your project. Specify if you need ends capped or plugged, protective wrapping, or a particular finish to prevent tarnish during transit. For large or international orders, clarify shipping terms and insurance coverage. These steps are especially important when you buy brass from multiple sources or when your project requires a mix of brass & fittings.

Clarity in alloy, size system, and finish prevents costly rework and delays.

By using this procurement and RFQ checklist, you’ll move from specification to delivery with confidence—ensuring your brass pipe project starts strong and finishes without surprises. Up next, we’ll cover the safety and code considerations that guarantee your installation passes inspection and stands the test of time.

Safety and Code Considerations Made Simple

Potable Water Compliance and Lead Content

When you’re installing brass pipe for plumbing, safety and compliance aren’t just boxes to check—they’re the foundation for a system that will pass inspection and last for years. Ever wondered why some brass water fittings are labeled for potable use, while others aren’t? The answer comes down to lead content and certification. For all drinking water applications in the U.S., the Safe Drinking Water Act (SDWA) requires that pipes, fittings, and fixtures—including brass copper fittings—must have a weighted average lead content of no more than 0.25% across wetted surfaces (EPA).

To ensure compliance:

1. Confirm your brass alloy and all brass fittings for water lines are certified “lead free” for potable use. Check for recognized certification marks or documentation from your supplier.
2. Review local plumbing codes and approvals, since different jurisdictions may have additional requirements or accepted standards.

Dezincification Risk Management

Imagine installing a beautiful brass for plumbing system, only to have it fail years later due to unseen corrosion. Dezincification—a process where zinc is selectively leached from brass—can lead to leaks or even pipe perforation, especially in aggressive water conditions or soils (Canadian Conservation Institute). The risk is highest in brasses with more than 15% zinc and in “duplex” alloys, but it can be mitigated by:

• Choosing alloys specifically designed to resist dezincification (often with tin, arsenic, or antimony additives).
• Specifying copper and brass fittings with proven corrosion resistance for aggressive environments.
• Regular inspection and maintenance—look for color changes from yellow to pink as an early warning sign.

Transition Joints and Galvanic Corrosion

Are you connecting brass water line fittings to copper, steel, or other metals? Whenever dissimilar metals meet, you risk galvanic corrosion, which can quickly eat away at your plumbing. To avoid costly surprises:

• Use dielectric unions or isolating fittings when joining brass to steel or galvanized pipe.
• Check that all joining materials (fluxes, solders, brazes) are code-approved for potable water and compatible with both brass and copper alloys (Copper Development Association).
• Inspect for proper grounding and bonding—incorrect electrical connections can accelerate corrosion.

Verification Steps and Documentation

To keep your installation safe and code-compliant, follow this verification checklist:

1. Confirm all brass alloys and fittings meet lead-free and potable water requirements.
2. Check local code approvals and accepted standards for your project location.
3. Select alloys and brass water fittings designed for resistance to dezincification if needed.
4. Validate that joining materials (flux, solder, braze) are approved for potable use and compatible with your chosen metals.
5. Inspect all transition joints for proper dielectric isolation and grounding.
6. Document all material certificates, compliance marks, and test reports for traceability.

What passes in one jurisdiction may fail in another—always align specs with your local code and water quality.

By following these steps, you’ll ensure your brass water fittings and brass fittings for water lines not only pass inspection but also stand the test of time. Next, we’ll explore how custom machining can help when standard parts don’t quite fit your project’s needs.

From Standard Brass Pipe to Custom Machined Solutions

When to Spec Custom Brass Fittings

Ever found yourself searching for a brass pipe fitting that just doesn’t exist in any catalog? Or maybe you need a manifold with ports at non-standard angles, or an adapter that transitions between rare thread types. When off-the-shelf options fall short—especially for specialty projects, prototypes, or repairs—custom brass fittings become your best solution. Imagine building a model steam engine, retrofitting a vintage plumbing system, or integrating sensors into a process line; in each case, custom geometry and tight tolerances are a must.

Custom solutions are especially valuable for:

• Adapters between metric and imperial pipe threads
• Brass connectors with unusual port arrangements or compact footprints
• Precision manifolds for instrumentation or test rigs
• Brass pipe fittings with unique sealing faces or profiles
• Low-volume specialty parts for restoration, hobby, or R&D

Threading, Porting, and Manifold Strategies

Sounds complex? It doesn’t have to be. Custom machining allows you to specify exactly what you need—down to the thread class, port size, and even the surface finish. For example, you might require threaded brass fittings with a specific British Standard Pipe (BSP) thread, or a hybrid part that connects copper and brass pipe fittings for a unique assembly. Model engineers often face this challenge, as thread standards can vary widely and older designs may not match today’s commercial offerings (Model Engineer Forum).

When designing a custom manifold or adapter, consider:

• Thread type and pitch—specify BSP, NPT, UNF, or custom threads as needed
• Port layout—optimize for clearance, flow, and ease of assembly
• Sealing surface—whether you need O-ring grooves, cone faces, or flat seats
• Wall thickness—ensure enough material for reliable threading and pressure containment
• Material certification—especially for potable water or critical process applications

How to Prepare CAD and Tolerance Notes

If you want your custom brass connectors made right the first time, clear communication is key. Here’s what to include in your machining-ready brief:

• 3D CAD model (STEP/IGES preferred for complex shapes)
• 2D drawings with full GD&T (geometric dimensioning and tolerancing)
• Thread callouts (type, size, TPI or metric pitch, gage class)
• Surface finish requirements (e.g., Ra 1.6 μm for sealing faces)
• Critical-to-function tolerances (highlighted for inspection)
• Required material certificates (for traceability or compliance)
• Any special plating, polishing, or marking instructions

For model engineering or restoration, a hand sketch with labeled dimensions and thread specs can sometimes suffice, but the more detail you provide, the better the result.

Choosing a Machining Partner: What to Look For

Not all CNC shops are created equal when it comes to custom brass fittings. Here’s a scannable list to help you select the right partner, with an emphasis on those who deliver both quality and speed:

• XTJ CNC Machining Services – Specializing in high-complexity projects, XTJ offers state-of-the-art 4 and 5-axis machining, ultra-tight tolerances (±0.005mm), and lead times as fast as 3 days. Ideal for custom brass adapters, leak-tight threaded connectors, and small manifolds that standard parts can’t provide.
• United Brass Manufacturers – Recognized for OEM brass valves and fittings, with proprietary CNC tooling and production for both high-volume and low-volume runs. Packaging and surface protection are tailored to your requirements.
• Protolabs – Suitable for rapid prototyping and low-run production of brass parts for medical, aerospace, and industrial needs.

Precision machining bridges the gap between standard brass pipe fittings and the exact geometry your project demands.

In summary, whether you’re building a one-off model, retrofitting legacy equipment, or designing a tight-tolerance test rig, custom machining unlocks possibilities that catalog parts simply can’t match. By preparing clear CAD and spec notes, and choosing a partner with proven expertise in brass connectors and fittings, you’ll get parts that fit right, seal tight, and perform reliably. If you’re ready to move from drawing board to finished part, consider reaching out to a specialist like XTJ for your next custom brass solution.

Frequently Asked Questions About Brass Pipe

1. Is brass pipe better than copper for plumbing?

Brass pipe offers excellent corrosion resistance and is easy to machine, making it suitable for certain plumbing and architectural uses. However, copper is often preferred for its lower lead content and broader code acceptance in potable water systems. Always check local codes and ensure the selected material meets health and safety standards for your application.

2. Are brass pipes safe to use for drinking water?

Brass pipes are safe for drinking water if they meet lead-free requirements, typically with a weighted average lead content of no more than 0.25%. Always verify certifications and choose brass copper fittings and pipe labeled for potable water to ensure compliance with health regulations.

3. Do plumbers still use brass pipes and fittings?

Yes, plumbers continue to use brass pipes and brass fittings, especially in applications where corrosion resistance, durability, and ease of installation are important. Brass is also commonly used for connectors and valves in both new and retrofit plumbing projects.

4. How do I choose between brass pipe and brass tube?

Choose brass pipe when you need a product sized by Nominal Pipe Size (NPS) for plumbing or threaded applications. Opt for brass tube when your project requires precise outside diameter, tight tolerances, or decorative finishes, such as in architectural or hobby work.

5. When should I consider custom machined brass fittings?

Custom machined brass fittings are ideal when standard parts do not meet your project's requirements, such as for unique thread types, special manifolds, or tight-tolerance adapters. Services like XTJ CNC Machining can deliver precision parts with rapid turnaround for specialized needs.
