Is Aluminium Magnetic? Quick Truth, Real Tests, Zero Myths

Is Aluminium Magnetic? Quick Truth, Real Tests, Zero Myths

Is Aluminium Magnetic?

Short answer to is aluminium magnetic

Ever tried sticking a fridge magnet to an aluminum can or window frame? You’ll notice nothing happens. The magnet simply slides off. So, is aluminum magnetic? The quick truth is: aluminum is not magnetic in the way most people expect. In scientific terms, it is a paramagnetic metal, not ferromagnetic. This means it has only a very weak response to magnetic fields—so weak that you won’t see or feel it in daily life. A standard magnet, even a powerful one, will not cling to aluminum under normal conditions.

What magnetic means in practice

Let’s break it down. When most people ask, "is aluminium magnetic," they want to know if magnets stick to aluminum. The answer is no. Materials like iron and steel are ferromagnetic—they have a strong, permanent magnetic attraction. Aluminum, on the other hand, is paramagnetic. It’s technically a magnetic aluminum in the sense that it shows a tiny, fleeting attraction to magnetic fields, but this effect is so slight that it’s invisible in routine situations. For all practical purposes, aluminum is considered non-magnetic.

  • Aluminum is not attracted to common permanent magnets.
  • Its magnetic response is extremely weak compared to iron or steel.
  • Moving magnets near aluminum can create drag or resistance, but not true sticking—this is due to eddy currents, not actual attraction.

Why magnets do not stick to aluminum

Sounds complex? Here’s why: In ferromagnetic materials, like steel, the magnetic domains inside the metal align and create a strong, lasting magnetic pull. Aluminum lacks these domains. Instead, its electrons only align very briefly and weakly when exposed to a magnetic field, and this effect disappears instantly once the field is gone (Amazing Magnets).

You might have seen demonstrations where a magnet seems to interact with aluminum—like a magnet falling slowly through an aluminum tube. This is not evidence that aluminum is magnetic. What’s happening is that the moving magnet induces electric currents (called eddy currents) in the aluminum, and these currents create a temporary, opposing magnetic field. The result is a gentle drag or resistance, not attraction. So, if you’re wondering, "do magnets stick to aluminum" or "can magnets stick to aluminum," the answer is no—they do not stick, they only interact dynamically when there’s motion involved.

This distinction matters in real life. Whether you’re working on a DIY project, selecting materials for manufacturing, or recycling metals, knowing that aluminium magnetic properties are negligible helps you make better choices. For example, aluminum is chosen for electronics and aerospace because it won’t interfere with magnetic sensors or fields. In recycling, it is separated from ferrous metals with special equipment that detects these subtle differences.

Curious about how to test this yourself, how temperature or alloys affect aluminum’s behavior, or how it compares to steel? Check out our later sections on Testing aluminum and Aluminum vs steel for hands-on tips and deeper dives.

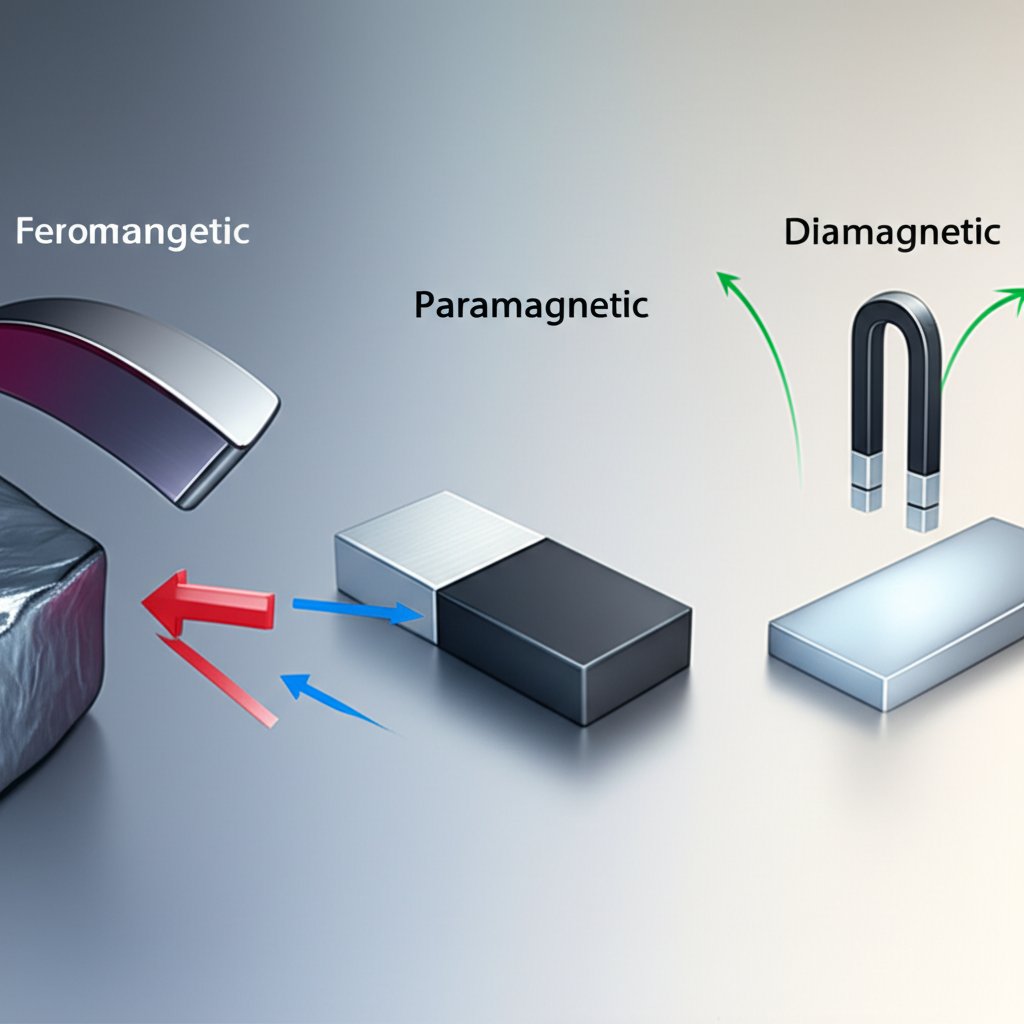

comparison of ferromagnetic paramagnetic (aluminum) and diamagnetic materials with a magnet

Magnetism Concepts That Actually Matter

Paramagnetism versus ferromagnetism

When you hear a metal is “magnetic,” you might picture iron nails sticking to fridge magnets or steel tools clinging to magnetic racks. That’s classic ferromagnetism—a strong, permanent form of magnetism found in metals like iron, nickel, and cobalt. These metals have regions called magnetic domains where electrons align in the same direction, creating a powerful, lasting magnetic pull.

Aluminum, on the other hand, falls into a different category: paramagnetism. What does that mean in practice? Paramagnetic materials like aluminum have unpaired electrons, but their response to a magnetic field is extremely weak and temporary. When you bring a magnet near aluminum, some electrons align very briefly, but as soon as the magnet is removed, everything snaps back to normal—no lingering magnetism, no “stickiness.”

  • Ferromagnetic metals: Strong, permanent attraction (iron, nickel, steel)
  • Paramagnetic metals: Weak, fleeting attraction (aluminum, platinum)
  • Diamagnetic materials: Weak repulsion (copper, bismuth)

So, if you’re wondering “is aluminum a magnetic metal” or “is aluminum ferromagnetic,” the answer is no—its behavior is fundamentally different from the metals that magnets love.

Magnetic susceptibility and permeability explained

Let’s break down two terms you’ll often see on datasheets: magnetic susceptibility and magnetic permeability. Sounds complex? Here’s the plain-language version:

  • Magnetic susceptibility tells you how much a material will become magnetized when exposed to a magnetic field. High susceptibility means strong response (think iron), while low susceptibility means barely any response (think aluminum).
  • Magnetic permeability measures how easily a magnetic field can pass through a material. If the permeability of aluminum is “very close to 1,” it means a magnetic field passes through almost as if the aluminum isn’t there at all.

For aluminum, both susceptibility and permeability are extremely low. According to materials science sources, aluminum’s mass susceptibility is about 2.2×10⁻⁵ in SI units—so small that it’s virtually undetectable in daily life (Stanford Advanced Materials). Its magnetic permeability is so close to 1 (the value for air or vacuum) that it’s considered “nonmagnetic” for almost all practical purposes.

Aluminum’s relative permeability is effectively unity, so permanent magnets will not cling.

This is why, despite being technically paramagnetic, aluminum is rarely called a “magnetic material.” The magnetic permeability of aluminium is so low that it won’t interfere with sensors, electronics, or other magnetic-sensitive equipment. That’s why it’s a top choice for aerospace, medical, and electronic applications.

How to read material datasheets

Curious about the aluminum magnetic properties for your next project? Here’s a quick guide to reading technical datasheets:

  • Look for fields labeled “relative permeability” or “magnetic susceptibility”.
  • If the value for relative permeability is listed as 1 (or very close), the material is effectively nonmagnetic.
  • Datasheets may also indicate “nonmagnetic” or “paramagnetic” in the notes section.
  • If you don’t see any magnetic data, you can safely assume standard aluminum alloys behave as nonmagnetic in most real-world settings.

Be aware: Slight differences in magnetic permeability of aluminum may occur between alloys or after certain processing steps, but these are so minor they won’t cause a magnet to stick or affect most assemblies. For nearly all fixtures, sensors, and structural uses, aluminum’s magnetic response is negligible.

Next, we’ll show you how these concepts play out in hands-on testing—so you can see (and feel) why aluminum is truly nonmagnetic in daily life.

Hands-On Tests You Can Trust

Quick kitchen test with a fridge magnet

Ever wondered, “does a magnet stick to aluminum?” You don’t need a physics lab to find out. With just a household magnet and a few common items, you can run simple tests to confirm what science says about aluminum’s magnetic properties. Here’s how to do it step by step:

  1. Gather your materials. Find a fridge magnet (or a strong neodymium magnet if available), an aluminum can (like a soda can), and a known steel object (such as a soup can or a kitchen knife).
  2. Calibrate your expectations. First, touch the magnet to the steel object. You’ll feel a strong pull—the classic “magnet sticks” effect. This is what happens with ferromagnetic metals like steel.
  3. Test the aluminum can. Now, press the same magnet against the clean side of the aluminum can. You’ll notice… nothing. The magnet slides off, showing that magnets stick to aluminum is a myth in everyday conditions. This result is the same whether you use a fridge magnet or a powerful neodymium magnet.
  4. Compare with copper (optional). If you have a copper pipe or coin, try the same test. Like aluminum, copper is nonmagnetic—so the magnet won’t stick here either.

Moving magnet and eddy current drag

But what about those viral videos where magnets seem to “interact” with aluminum? Here’s a hands-on demonstration to explain what’s really happening:

  1. Slide the magnet across an aluminum plate. Place your magnet on a flat piece of aluminum and give it a gentle push. You’ll notice a subtle resistance or drag—not sticking, but a kind of slowing down. This is not magnetic attraction. Instead, it’s caused by eddy currents: as the magnet moves, it induces tiny electric currents in the aluminum, which create a brief, opposing magnetic field. This field resists the magnet’s motion, but only while it’s moving.
  2. Drop the magnet through an aluminum tube. If you have an aluminum tube, drop a strong magnet down the center. Instead of falling quickly, the magnet descends slowly, as if gliding. Again, this is the eddy current effect—not evidence that aluminum is magnetic.

Key point: The drag you feel or see is not the same as a magnet “sticking” to steel. It’s a temporary, motion-dependent effect, not true magnetic attraction.

Safe setup and interpretation tips

  • Be gentle with strong magnets. Neodymium magnets are brittle and can snap together with surprising force. Handle with care, especially near soft aluminum surfaces to avoid scratches.
  • Watch for misleading results. If it seems like your magnet is sticking to aluminum, check for hidden steel fasteners, magnetic labels, or composite materials with ferrous backings. Re-test on a clean, isolated area of pure aluminum.
  • Document your results. Take photos or notes if you need to share your findings with suppliers or quality teams. This can help resolve confusion about material identity or performance.
  • Optional: Use a gaussmeter. If you have access to a small gaussmeter, you can measure the magnetic field near the aluminum. You’ll find that the field doesn’t increase near the metal—further proof that aluminum doesn’t become magnetized.

So, will magnets stick to aluminum? The answer is no—whether you’re doing a quick kitchen test or a more advanced demonstration. If you ever wonder, “does aluminum stick to a magnet” or “do magnets work on aluminum,” these hands-on experiments will give you a confident, evidence-based answer. And if you’re comparing with other materials, remember: will a magnet stick to steel? Absolutely—making the magnet test a reliable way to tell these metals apart.

Next, we’ll explore how different alloys and surface treatments affect aluminum’s magnetic behavior, and why apparent attraction is almost always due to something else.

magnets not sticking to various finished aluminum objects confirming nonmagnetic behavior

How Real-World Aluminum Stays Nonmagnetic

Common alloy families and magnetic behavior

When you hear “aluminum is an alloy,” you might wonder if mixing in other elements changes its magnetic nature. The reality? For nearly all everyday uses, aluminum is not magnetic, regardless of the alloy. Whether you’re dealing with pure aluminum (1xxx series) or popular engineering grades like 5xxx, 6xxx, or 7xxx, none of these become ferromagnetic. The main alloying elements—magnesium, silicon, copper, and zinc—do not create a magnetic aluminum effect. Instead, these alloys remain aluminium non magnetic for practical purposes.

There are a few specialized alloys, such as those containing significant iron or cobalt (like Alnico), that are engineered for magnetic applications. However, these are exceptions and not what you’ll find in typical sheet, extrusion, or casting aluminum. For the vast majority of consumer and industrial products, aluminum alloys behave as non magnetic aluminum.

Effects of anodizing and coatings

Ever seen “anodized aluminum magnetic” in a product description and wondered if the finish changes anything? Here’s what’s really happening: Anodizing is a process that thickens the naturally occurring oxide layer on aluminum, improving corrosion resistance and allowing for vibrant colors. This oxide layer is electrically insulating, but it does not make aluminum magnetic. If you notice any attraction between a magnet and anodized aluminum, it’s almost always due to hidden steel fasteners, magnetic labels, or embedded hardware—not the aluminum or its finish.

Similarly, other surface treatments like painting, powder coating, or galvanization (zinc coating) do not add magnetism. Zinc, like aluminum, is paramagnetic and does not turn the metal into a magnetic material. So, if you’re asking, “why isn’t aluminium magnetic after anodizing or coating?”—the answer is simple: surface finishes don’t change the core nonmagnetic behavior.

Contamination versus composition

Imagine testing a piece of aluminum, only to find a magnet sticks in one spot. Does this mean the metal is suddenly magnetic? Not quite. In real-world manufacturing, trace iron contamination, embedded steel chips, or magnetic inserts can create localized magnetic attraction. These are not true changes in the aluminum itself, but rather the result of contamination or assembly choices (DoITPoMS).

During recycling or machining, small amounts of ferrous debris can become trapped in the surface. Even less than 1% iron can slightly alter the response, but the main aluminum matrix still remains nonmagnetic. Always check datasheets for notes on microstructure and inspect parts after fabrication or finishing, especially if you need to guarantee aluminium non magnetic performance for sensitive applications.

  • Typical nonmagnetic use cases:
    • Medical imaging environments (MRI rooms)
    • Sensor housings near magnetic fields
    • Nonmagnetic fasteners for electronics
    • Aerospace and transportation parts
  • Edge cases where inclusions can matter:
    • Parts with embedded steel pins or chips from machining
    • Assemblies containing magnetic labels or fasteners
    • Recycled aluminum with unplanned iron content

So, is aluminum attracted to a magnet in any of these scenarios? Only if there’s ferrous contamination or an intentional magnetic insert. For nearly all standard alloys and finishes, aluminum is not magnetic—and that’s exactly why it’s trusted for environments where stray magnetism would be a problem.

Next up, we’ll look at how environmental factors like temperature and field strength can influence aluminum’s already subtle magnetic response, and what this means for demanding real-world applications.

Why Aluminum’s Magnetism Doesn’t Change

Field Strength and Frequency: What Really Happens Around Aluminum

Ever wondered why is aluminum not magnetic even when exposed to strong magnets or electrical devices? The answer lies in the environment—specifically, the type of magnetic field and how it interacts with aluminum in real-world situations.

In ordinary, static magnetic fields at room temperature, aluminum’s response is so weak you’ll never notice it. That’s because aluminum is paramagnetic: it only shows a faint, temporary attraction to magnetic fields, and this effect disappears as soon as the field is gone. So, if you’re asking, “does aluminum attract magnets?” or “can magnets attract aluminum?”—the answer is no for static conditions. Magnets won’t stick, and there’s no meaningful pull.

But what about moving magnets or alternating magnetic fields? Here’s where things get interesting. When a magnet moves near aluminum—or when an alternating current creates a changing magnetic field—aluminum’s excellent electrical conductivity comes into play. The motion induces eddy currents in the metal, which briefly generate their own magnetic fields. These fields oppose the movement of the magnet, creating resistance or drag, but not true attraction. This is the science behind electromagnetic braking in roller coasters or the separation of aluminum cans in recycling plants.

So, while aluminum isn’t magnetic in the traditional sense, alternating or moving fields can make it “interact” with magnets dynamically. That’s why you’ll see a magnet slow down as it slides across an aluminum plate or falls through an aluminum tube. Still, this does not mean aluminum can be magnetized; it’s simply a temporary effect caused by induced currents.

Low Temperature Behavior: Does Extreme Cold Make Aluminum Magnetic?

Imagine you’re working in a cryogenic lab or a space application. You might ask, “is aluminum paramagnetic at low temperatures, or does it ever become magnetic?” Scientific studies show that aluminum’s paramagnetic properties persist even as temperatures drop, but subtle changes can occur. According to research on the magnetic properties of aluminum alloys at low temperatures, the magnetic susceptibility of aluminum alloys can shift slightly depending on alloying elements and temperature, but these changes remain extremely small. There is no evidence of aluminum becoming ferromagnetic or superconducting under conditions you’d encounter in the home, workshop, or most industries.

Superconducting transitions (where a material suddenly expels magnetic fields) do not occur in aluminum at temperatures above 1 kelvin, which is far below anything seen outside specialized physics labs. For all practical purposes, even in the cold, aluminum is not magnetic and cannot be magnetized in a way that would cause magnets to stick or pull.

Moisture, Corrosion, and False Impressions

Ever noticed a magnet sticking to a piece of aluminum outdoors, or wondered, “is aluminum foil magnetic after it’s been exposed to the elements?” In reality, pure aluminum and common alloys remain nonmagnetic. However, rust, corrosion, or contamination from iron particles can create a misleading result. If a magnet clings to a spot, it’s likely due to:

  • Embedded steel or iron debris from machining or recycling
  • Magnetic fasteners or hardware hidden beneath the surface
  • Corrosion products that include ferrous (iron-containing) materials

So, if you’re testing aluminum foil or sheet and a magnet seems to stick, double-check for these factors. The base metal itself is still nonmagnetic.

Checklist: How to Standardize Your Magnetic Tests

Want to ensure your results are reliable and repeatable? Here’s a quick checklist to document the key variables whenever you test if aluminum is magnetic:

Variable What to Record
Temperature Room, cold storage, or cryogenic?
Magnet Type Ceramic, neodymium, or electromagnet? List strength if labeled.
Motion Static (magnet held still) or dynamic (magnet moving)?
Surface Condition Clean, corroded, painted, or contaminated?
Material Purity Any known alloying elements or possible contamination?

By following these steps, you’ll avoid common pitfalls and confidently answer questions like, “why is aluminum non magnetic?” or “do magnets attract aluminum in real environments?” For deeper technical data, consult materials databases or standards organizations such as ASTM or ASM International.

In summary, whether you’re testing aluminum foil, a thick extrusion, or a machined part, the answer remains the same: aluminum is not magnetic, regardless of temperature, field strength, or moisture. If you ever see apparent attraction, check for contamination or hidden hardware first. Next, we’ll put aluminum’s magnetic response side by side with other metals—so you can spot the difference in any setting.

Aluminum Versus Other Metals at a Glance

How Aluminum Compares to Steel, Copper, and More

When you’re sorting metals for recycling, planning a project near sensitive electronics, or just curious about what metals are not magnetic, it helps to see the differences side by side. Ever wondered, "what will magnets stick to" or "do magnets stick on stainless steel"? Let’s break it down with a practical comparison table you can use in the shop, lab, or even your kitchen.

Metal / Alloy Static Magnet Sticks? Moving Magnet Effect? Typical Applications Notes
Aluminum No Strong eddy current drag Aircraft, electronics, beverage cans, automotive Nonmagnetic; chosen for non-interference with sensors
Carbon Steel Yes Very strong drag and attraction Construction, tools, machinery, fasteners Classic ferromagnetic; what magnets stick to most
Stainless Steel (Ferritic) Yes Moderate drag Appliances, automotive trim, cutlery Magnetic; often used where corrosion resistance and magnetism are needed
Stainless Steel (Austenitic) Usually No Very weak or none Food processing, medical tools, kitchen sinks Generally nonmagnetic, but may become slightly magnetic after cold working; if you’re wondering, "does stainless steel magnet stick?"—it depends on the specific grade and how it’s been processed
Copper No Strong eddy current drag Electrical wiring, plumbing, coins Nonmagnetic; excellent conductor
Brass No Strong eddy current drag Valves, musical instruments, decorative hardware Nonmagnetic alloy of copper and zinc
Titanium No Very weak or none Medical implants, aerospace, sporting goods Nonmagnetic; check alloys for rare exceptions
Magnesium No Very weak or none Lightweight parts, electronics, automotive Nonmagnetic; ideal for weight-sensitive, nonmagnetic uses

When Magnets Stick and When They Do Not

So, what type of metal is not attracted to magnets? As you can see from the table, metals like aluminum, copper, brass, titanium, and magnesium are all nonmagnetic. In other words, if you’re holding a magnet and wondering what metals do not stick to a magnet, these are your top candidates. This is why aluminum and copper are so popular in electronics and medical fields—they won’t interfere with magnetic sensors or imaging equipment.

On the other hand, carbon steel and ferritic stainless steel are classic examples of what will magnets stick to. If you need a metal that a magnet will cling to for holding, sorting, or detection, these are your best choices. Austenitic stainless steel is a special case: it’s usually nonmagnetic, but cold working (like bending or rolling) can make it slightly magnetic—so always check if your application is sensitive to even weak magnetism.

  • Choose nonmagnetic metals (like aluminum, copper, or titanium) for fixtures near magnetic sensors, in MRI rooms, or when you need to avoid interference.
  • Use magnetic metals (like carbon steel) when you need reliable detection, sorting with magnets, or structural parts that must be held in place magnetically.
  • For recycling, remember: a quick magnet test will separate non-ferrous (nonmagnetic) metals like aluminum from ferrous (magnetic) metals like steel (M&M Recycling).

Still unsure about a specific part? Try the magnet test yourself, or check the alloy’s datasheet. In the next section, we’ll show you how to standardize these tests—from simple fridge magnets to advanced field meters—so you always know exactly what you’re working with.

step by step process for testing if a metal is aluminum using a magnet

How to Confidently Check If Aluminum Is Magnetic

Basic Magnet and Slide Tests

Ever picked up a piece of metal and wondered, “does magnet stick to aluminum?” Here’s a hands-on, step-by-step approach to answer this question with confidence—no lab coat required. Whether you’re a DIYer, engineer, or recycler, these methods help you distinguish true aluminum magnetism from everyday myths.

  1. Identify the metal and clean a test area. Start by checking the surface for labels, coatings, or obvious signs of contamination. Wipe away dirt, oil, or debris—especially important if you’re testing scrap or recycled parts.
  2. Test a known steel reference first. Grab a fridge magnet or, for more sensitivity, a neodymium magnet. Touch it to a steel object (like a can or tool) to confirm the magnet’s strength and your expectations. This “calibration” step ensures your magnet is working properly.
  3. Attempt the static stick test on the aluminum part. Press the magnet firmly against the clean aluminum surface. If you’re asking, “will magnet stick to aluminum?”—you’ll notice it slides off with no resistance. This is because the permeability of aluminium is so close to air that it doesn’t support magnetic attraction.
  4. Perform a slide test for eddy current drag. Place the magnet flat on the aluminum and push it gently. Unlike steel, where the magnet sticks, here you’ll feel a subtle drag as you move it. This drag isn’t because does magnets stick to aluminum—it’s a result of eddy currents induced in the metal, temporarily opposing the motion but never causing true sticking.

Intermediate Checks with Gaussmeters and Hall Sensors

  1. Use a handheld gaussmeter to measure field presence. Curious about aluminum magnetic permeability? Place the gaussmeter probe near the aluminum. You’ll see that the field strength does not noticeably increase near the metal, confirming the absence of significant aluminum magnetism. This tool is especially useful if you suspect residual magnetism or want to document results for quality control.
  • For higher accuracy, use a Hall effect sensor to detect even faint magnetic fields. If the reading doesn’t change when moving from air to aluminum, you can be sure the material is nonmagnetic.

Advanced Eddy Current and Permeability Tools

  1. Test with an eddy current probe or portable permeability meter. For industrial or scientific applications, these tools can confirm that the aluminium permeability is nearly unity (1.0). This means the material does not concentrate or distort magnetic fields in any noticeable way. Eddy current testers are also used to sort aluminum alloys or check for heat treatment, but they won’t find ferromagnetism.
  2. Document results with photos and notes. For traceability, especially in manufacturing or quality assurance, record your findings. Take clear photos of the test setup, note the type of magnet used, and describe the surface condition. If you’re reporting to an engineering team, this documentation helps avoid confusion and supports material verification.
No static attraction plus noticeable sliding drag strongly indicates aluminum or copper rather than ferromagnetic steel.

Magnet Selection and Safety Tips

  • Ceramic vs neodymium magnets: Ceramic magnets are weaker and might not show subtle drag effects, while neodymium magnets are much stronger and more sensitive—just be careful, as they can pinch fingers or damage soft aluminum surfaces.
  • Re-test after machining or finishing: If the part has been cut, drilled, or ground, always check again for embedded steel chips or iron contamination. This is a common reason why someone might think does aluminum stick to magnets—when in fact, it’s the debris, not the aluminum, causing the attraction.
  • Consult supplier datasheets: For critical projects, look up the alloy identification code and review any notes on aluminum magnetic permeability. Most standard grades will be listed as nonmagnetic or paramagnetic, confirming your hands-on findings.

By following this protocol, you can confidently answer, “does magnet stick to aluminum?” or “will magnet stick to aluminum?”—and back up your answer with real evidence. These steps not only clarify the truth about aluminum magnetism but also help standardize communication with engineers, suppliers, and quality teams. Next, we’ll wrap up with key takeaways and smart next steps for sourcing and testing nonmagnetic materials.

When to Partner for Prototyping and DFM

Designing for Nonmagnetic Performance

When your project demands components that won’t interfere with magnetic fields—think MRI rooms, sensitive sensors, or electronics—choosing the right materials and partners becomes critical. Aluminum’s status as a non ferrous, nonmagnetic metal makes it a top choice, but success depends on more than just the base alloy. How do you guarantee your parts remain nonmagnetic from prototype to production?

  • Select the right alloy: Choose grades like 6061, 5052, or 7075, which are known for their strength and nonmagnetic nature. These alloys are widely used in aerospace, medical, and electronics industries because they resist magnetism and offer excellent mechanical properties.
  • Specify nonmagnetic requirements on drawings: Clearly indicate in your specs that nonmagnetic performance is essential. This helps avoid accidental substitutions or contamination during fabrication.
  • Confirm finishes won’t add magnetism: Anodizing, a popular finish for aluminum, does not make the metal magnetic. If you need corrosion resistance or a specific appearance, anodizing is a safe choice that won’t affect magnetic properties.
  • Inspect for contamination: After machining or assembly, check for embedded steel chips or iron debris. Even a small amount can cause false positives in magnetic tests.

Rapid Prototyping with Aluminum Alloys

Imagine you’re developing a new sensor housing or medical device and need to quickly validate that your chosen material won’t interfere with magnetic equipment. Rapid prototyping with aluminum offers a fast, reliable way to test form, fit, and function—especially when confirming nonmagnetic behavior is a must.

  • Speed and flexibility: Rapid prototyping services allow you to iterate designs and receive functional, nonmagnetic aluminum parts within days. This is especially useful for early-stage testing or when timelines are tight.
  • Material variety: Leading providers offer a range of alloys, including 6061 and 7075, ensuring you can match your prototype to final production materials.
  • Finish options: Choose from anodizing, polishing, or custom coatings to simulate end-use conditions and validate not just functionality, but also appearance and durability.

For teams that need to quickly validate magnetic performance, working with a partner experienced in aluminum rapid prototyping—such as XTJ—can streamline the process. Their engineers can help you select alloys and finishes that guarantee nonmagnetic results, while their rapid turnaround keeps your project on schedule.

DFM Feedback to Avoid Magnetic Pitfalls

Design for Manufacturability (DFM) is more than just a buzzword—it’s a proven approach to reducing costs, improving quality, and ensuring your parts meet all performance targets, including nonmagnetic requirements (Engineers Edge). Here’s how DFM feedback helps you avoid surprises:

  • Ferrous contamination prevention: DFM reviews can identify machining steps or assembly processes where steel tools or fixtures might introduce magnetic debris.
  • Material traceability: By tracking alloys from supplier to finished part, you minimize the risk of accidental substitutions that could compromise your nonmagnetic goals.
  • Assembly optimization: DFM experts can suggest design tweaks—like using nonmagnetic fasteners or isolating critical areas—to further reduce the risk of unwanted magnetism.

Prototyping partners who offer complimentary DFM advice, like XTJ, help you optimize both design and process before scaling up. This is especially valuable when you need to ensure that what sticks to aluminum is only what you intend—never a stray magnet or ferrous contaminant.

  • Use rapid prototyping to quickly test and refine nonmagnetic assemblies.
  • Verify all specifications—material, finish, and cleanliness—before moving to production.
  • Leverage DFM feedback to minimize risk and streamline manufacturing.

By following these steps and collaborating with a knowledgeable manufacturing partner, you can confidently deliver aluminum components that meet strict nonmagnetic standards—whether for medical, aerospace, or advanced electronics applications. In the final section, we’ll wrap up with actionable takeaways and resources for sourcing, testing, and documenting your results.

Takeaways, References, and Smart Next Steps for Testing Aluminum Magnetism

Key points to remember about aluminum magnetic material

Aluminum is effectively nonmagnetic for everyday use; any apparent sticking usually indicates ferrous components or motion-induced eddy currents, not true attraction.

Still wondering, "is aluminum magnetic yes or no?" The answer is a clear no for all practical purposes. Aluminum’s paramagnetic nature means it does not attract magnets in daily life, and magnets will not stick to pure aluminum or its common alloys. If you see a magnet clinging to something labeled as aluminum, it’s almost always due to hidden iron, steel fasteners, or contamination—not the aluminum itself.

Where to find reliable property data

When you need to confirm whether a material is an is aluminium magnetic material or not, don’t rely on guesswork. The best approach is to check credible, technical sources. Here’s where you can look:

  • ASM International: Find detailed datasheets and property tables for aluminum alloys, including magnetic susceptibility and permeability.
  • MatWeb and NIST: These databases offer searchable material properties, so you can verify if aluminum is attracted to magnets or not for your specific alloy or application.
  • Manufacturer datasheets: Always review technical sheets for notes on magnetic behavior, especially if your project requires nonmagnetic performance.

Remember, aluminum’s magnetic properties are so weak that it’s considered nonmagnetic for nearly all engineering, medical, and consumer applications. These sources will help you confirm the facts and avoid costly mistakes.

Next steps for testing and sourcing nonmagnetic aluminum

Ready to put your knowledge into practice? Here’s a quick checklist to ensure you get accurate results and select the right material for your needs:

  • Verify with both static and sliding magnet tests. If a magnet slides off and does not stick, you’re likely working with pure aluminum.
  • Document the test environment: note the temperature, magnet type, and any motion involved. This helps rule out false positives from eddy currents or contamination.
  • Consult recognized databases for magnetic susceptibility and permeability values if you need to certify nonmagnetic performance.
  • When in doubt, inspect for hidden steel fasteners, embedded iron chips, or coatings that might influence your results.
  • If your application is sensitive—such as for electronics, medical devices, or aerospace—consider rapid prototyping with certified nonmagnetic alloys to validate your design.

For teams that need fast, clean aluminum prototypes to validate nonmagnetic performance and avoid ferrous contamination, a reliable partner can make all the difference. XTJ’s rapid prototyping services offer expert guidance on material selection, surface finish, and DFM (Design for Manufacturability) feedback to ensure your parts meet strict nonmagnetic requirements—helping you move quickly from concept to tested reality.

Why isn’t aluminum magnetic, and can a magnet stick to aluminum?

To wrap it up: aluminum’s atomic structure gives it a paramagnetic—essentially nonmagnetic—character. That’s why, in answer to “why isn’t aluminum magnetic,” the explanation comes down to its electron arrangement and lack of magnetic domains. So, can a magnet stick to aluminum? Only if there’s something else at play, like contamination or hidden steel. For all practical purposes, aluminum remains a trustworthy choice wherever nonmagnetic performance is critical.

With these takeaways and resources, you’re ready to confidently source, test, and specify aluminum for any application where magnetic neutrality matters. Whether you’re working on a DIY project, engineering a new device, or managing a recycling operation, understanding the facts about aluminum’s magnetism will help you make smart, reliable decisions.

Frequently Asked Questions About Aluminum and Magnetism

1. Will magnetic signs stick to aluminum?

Magnetic signs will not stick to aluminum surfaces because aluminum is not ferromagnetic. This means magnets have no significant attraction to aluminum, so magnetic signs require steel or iron panels for proper adhesion.

2. Why is aluminum paramagnetic?

Aluminum is paramagnetic due to its atomic structure, which includes unpaired electrons. These electrons align very weakly with a magnetic field, but the effect is so minimal that it cannot be detected in everyday situations. As a result, aluminum does not exhibit strong magnetic attraction.

3. Can magnets stick to aluminum under any circumstances?

Magnets do not stick to aluminum in normal conditions. However, when a magnet moves near aluminum, it can create resistance due to eddy currents, which is not true magnetic attraction. If a magnet appears to stick, it's usually because of hidden steel parts or contamination, not the aluminum itself.

4. Does anodizing or coating make aluminum magnetic?

Anodizing or applying coatings does not make aluminum magnetic. These processes only change the surface appearance or corrosion resistance. If you notice magnetic attraction after finishing, it's likely due to embedded iron debris or steel fasteners, not a change in the aluminum's magnetic properties.

5. How can I test if a metal is aluminum or steel using a magnet?

To test, touch a magnet to the metal. If it sticks, the metal is likely steel or another ferromagnetic material. If the magnet slides off or shows no attraction, it is probably aluminum. For more reliable results, clean the surface and check multiple spots to rule out hidden steel components.

Leave a comment

Please note, comments must be approved before they are published

What are you looking for?

Popular Searches:  Jeans  Dress  Top  Summer  SALE
