Titanium Element Basics Without Jargon

What the titanium element is and why it matters

When you hear about the titanium element, you might picture cutting-edge aircraft, medical implants, or even sleek watches. But what exactly is titanium, and why does it show up in such critical places? Simply put, titanium (chemical symbol Ti) is a transition metal found on the periodic table. It's prized for being lightweight, extremely strong, and highly resistant to corrosion. These qualities make it a go-to choice in industries where performance, durability, and reliability are non-negotiable—from aerospace to medicine and beyond.

• Element for Ti: Titanium’s symbol is Ti and its atomic number is 22.
• Color: In its pure form, titanium is a silvery gray metal with a bright luster.
• Density: About 4.5 g/cm³, making it much lighter than most other strong metals.
• Melting Point: 1,660 °C (3,020 °F), which is very high for a structural metal.
• Magnetic Properties: Titanium is non-magnetic—it won’t stick to a magnet.
• Corrosion Resistance: Titanium forms a stable oxide layer that protects it from rust and tarnish in most environments.

Where titanium sits on the periodic table

Titanium is found in Group 4 (IVb) of the periodic table, right alongside other transition metals. Its electron configuration is [Ar]3d²4s². This placement helps explain its unique blend of strength and chemical resistance. The element for Ti is not just a curiosity—it’s the backbone of many advanced materials used today. [source]

Is titanium magnetic and does titanium rust?

Is titanium magnetic? The short answer: No. Titanium is non-magnetic, so it doesn’t react to magnetic fields—making it ideal for sensitive applications like MRI scanners or high-tech electronics. As for rust, titanium is famous for its ability to resist corrosion. Unlike iron or regular steel, it naturally forms a thin, protective oxide layer that shields it from moisture, chemicals, and even seawater. That means titanium doesn’t rust or tarnish under normal conditions.

• Is titanium magnetic? No, it is non-magnetic.
• Does titanium rust? No, it resists rust and tarnish thanks to its oxide layer.
• What color is titanium? Silvery gray, sometimes with a bluish tint after certain surface treatments.
• What does Ti stand for? Ti is the chemical symbol for titanium.

How titanium compares to common metals in simple terms

Imagine lifting a steel bar and a titanium bar of the same size. You’ll notice titanium is much lighter, but surprisingly tough. Compared to steel, titanium offers a higher strength-to-weight ratio and far better corrosion resistance. Unlike aluminum, it’s much stronger and can withstand higher temperatures. While titanium is less hard than some steels, it’s much more biocompatible—meaning it won’t react with the human body, making it perfect for implants and medical tools.

• Element vs. Alloy: Titanium element refers to pure Ti atoms. Alloys mix Ti with other metals for added properties.
• Oxide: Titanium oxide is a compound (like TiO₂) formed when titanium reacts with oxygen—used in pigments and coatings.

Titanium combines low density with exceptional strength and corrosion resistance, enabling high-performance designs.

In short, the titanium element stands out for its unique blend of lightness, strength, and durability—qualities that drive its use in everything from jet engines to joint replacements. Next, we’ll explore where titanium is found in nature, how it’s extracted, and what makes its ores special before diving into how this remarkable metal is manufactured and used in real-world applications.

Where Titanium Is Found and Ore Essentials

Where titanium is found in the Earth’s crust

Ever wonder where natural titanium comes from before it ends up in high-tech products? Titanium is actually the ninth most common element in the Earth’s crust, but you won’t find it as shiny metal nuggets. Instead, it’s widely dispersed in rocks, sands, and soils, almost always locked up in stable mineral compounds. So, if you’re asking "where is titanium found" or "where is titanium located," the answer is nearly everywhere—but only certain minerals are rich enough to be practical sources for titanium extraction [source].

Common titanium-bearing minerals and what they look like

When you dig into the world of titanium ore, two names stand out: ilmenite and rutile. These are the primary minerals mined to produce titanium metal and pigment. Ilmenite (FeTiO₃) is more abundant, while rutile (TiO₂) is purer but rarer. Both are found in hard rocks and, more commonly, in placer deposits—sands and gravels created by the action of water or wind over millions of years. Curious how is titanium formed in these deposits? It’s all about natural weathering and the movement of sediments that concentrate these heavy minerals.

• Ilmenite: Black, metallic to sub-metallic luster, often magnetic, found in both igneous rocks and beach sands.
• Rutile: Deep red to brown, glassy luster, non-magnetic, typically forms slender crystals in sands or as an accessory mineral in metamorphic rocks.
• Other minerals: Anatase, leucoxene, perovskite, and titanite occur but are less common sources.

From mineral to concentrate: how is titanium made ready for industry?

Once titanium ore is identified, it goes through basic beneficiation steps to concentrate the titanium content. This usually means crushing the rock, separating heavier titanium minerals from lighter waste using gravity or magnetic methods, and then further refining the concentrate. For example, placer mining uses water and gravity spirals to sort out ilmenite and rutile from sand. Dry mining uses earth-moving equipment for deposits above the water table. After separation, the ore is cleaned and sorted to produce a concentrate that’s ready for further processing—this is the first answer to "how is titanium made" from its raw mineral state [source].

• Ilmenite sand: Dense, black, and often magnetic—look for it in beach deposits mixed with lighter sands.
• Rutile grains: Red-brown, glassy fragments, sometimes needle-like, often found with quartz or zircon.
• Associated minerals: Zircon, magnetite, and garnet are often found alongside titanium ores in placers.

Most titanium in nature is found as stable oxide minerals—this explains both its resistance to corrosion and why titanium dioxide is so widely used in pigments and coatings.

In summary, natural titanium is rarely found in pure form but is concentrated in specific titanium ore minerals like ilmenite and rutile. The journey from raw mineral to industrial concentrate is all about separating and purifying these heavy, oxide-rich grains. Next, we’ll walk through how these concentrates are transformed into metallic titanium using industrial processes like the Kroll method.

From Ore to Metal

The Kroll Process Explained Step by Step

Ever wondered how raw titanium ore becomes the high-performance metal in jet engines or implants? The answer is the Kroll process—the workhorse of titanium manufacturing for decades. Sounds complex? Let's break it down into clear, digestible steps so you can see how titanium/titanium dioxide is transformed from mineral concentrate to usable metal.

1. Ore to TiO₂ Feedstock: After beneficiation, ilmenite or rutile concentrates are upgraded to produce high-purity titanium dioxide (TiO₂), the starting point for metal production. This step removes iron and other impurities, often through chemical leaching or thermal treatment.
2. Chlorination to TiCl₄ (Titanium Tetrachloride): TiO₂ is reacted with chlorine gas and carbon at high temperatures, producing titanium tetrachloride (TiCl₄), a volatile liquid. This step separates titanium from remaining impurities, as most contaminants do not form volatile chlorides.
3. Purification of TiCl₄: The crude TiCl₄ is distilled to remove iron, vanadium, and other metal chlorides, yielding highly pure "tickle" (industry slang for TiCl₄). This purified liquid is essential for making high-quality titanium metal.
4. Reduction to Titanium Sponge: In a large stainless steel retort, purified TiCl₄ is reduced with molten magnesium at about 800–900°C in an inert argon atmosphere. This produces porous, metallic titanium known as "sponge" and magnesium chloride as a byproduct. The sponge is then separated from residual magnesium and salts by vacuum distillation and leaching. [source]
5. Consolidation—From Sponge to Ingot: The brittle titanium sponge is crushed, pressed, and melted (often via Vacuum Arc Remelting, or VAR) to form dense ingots. These ingots may be remelted for further purification and homogenization, especially for critical aerospace or medical applications.
6. Conversion to Mill Products: Ingots are forged, rolled, or cast into billets, plates, bars, sheets, and wires. Atomized powders can also be produced for additive manufacturing or powder metallurgy.

Alternatives to Kroll: New and Emerging Processes

While the Kroll process dominates how titanium is produced today, researchers have developed promising alternatives aiming to reduce cost and energy use. Two notable examples:

• FFC Cambridge Process: An electrochemical method that reduces solid TiO₂ directly to metallic titanium in molten calcium chloride. This process can operate at lower temperatures and may simplify titanium manufacturing in the future, though scale-up challenges remain. [source]
• Armstrong and TiRO Processes: These use continuous reactors and alternative reductants (like sodium or magnesium powder) to produce titanium powder or sponge more efficiently, but are not yet as widespread as Kroll.

From Sponge to Usable Forms: Ingot, Bar, Plate, Powder

After sponge production, the journey continues through melting, refining, and shaping. Imagine the path from a rough, porous sponge to precision aerospace parts or biomedical implants:

At every stage, environmental and energy considerations are critical—chlorine and magnesium must be carefully handled and recycled, while melting and refining demand significant energy and emissions controls to ensure safety and sustainability.

Why So Many Grades and Alloys?

Turning titanium sponge into a finished product isn’t just about shaping metal—it’s about controlling impurities, microstructure, and alloy content to match the demanding needs of each application. That’s why you’ll see a wide range of grades and titanium alloys, each tailored for specific strength, corrosion resistance, or fabrication requirements. Next, we’ll explore how to choose the right grade or alloy for your project, and what makes each one unique in practice.

Choosing Grades and Alloys That Fit Your Design

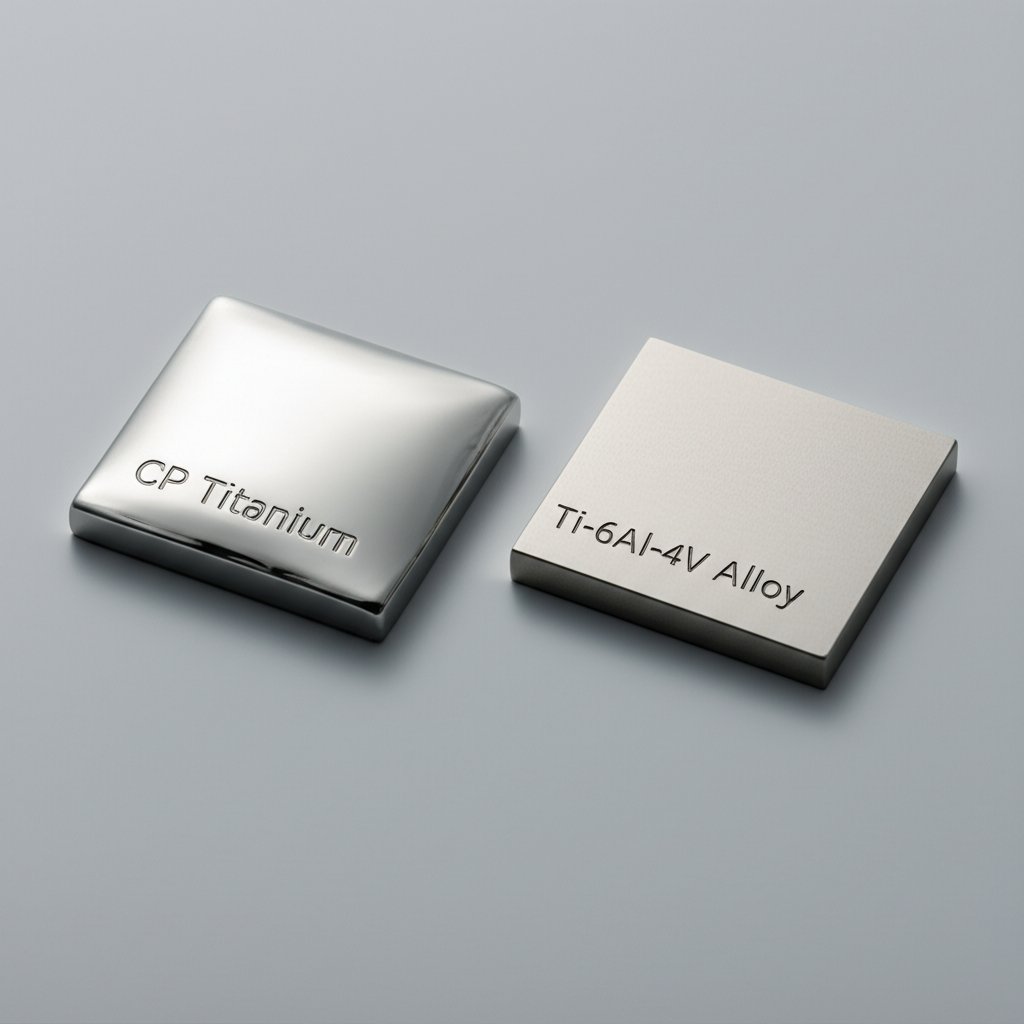

CP Titanium Versus Alloyed Titanium: What’s the Difference?

When you’re selecting titanium material for a project, it’s easy to get lost in a sea of grades and technical jargon. Sounds complex? Let’s break it down: the main choice is between commercially pure (CP) titanium and titanium alloys. CP grades (Grades 1–4, 7, 11) are essentially unalloyed, while alloys (like Grade 5/Ti-6Al-4V) mix titanium with other elements to enhance specific titanium properties such as hardness, strength, or weldability.

When to Choose Ti-6Al-4V (Grade 5) and When Not To

Imagine you’re designing a part that needs to be both strong and light—think aerospace brackets or high-performance engine parts. This is where titanium alloy Ti-6Al-4V shines. It’s the most widely used titanium alloy for a reason: it offers a rare mix of high strength, relatively low weight, and impressive corrosion resistance. But it’s not always the best choice. If your application demands maximum corrosion resistance (like in aggressive chemical environments) or easy formability (deep drawing, complex shapes), a CP titanium grade—especially Grade 2 or 7—may be a better fit.

• Use Ti-6Al-4V: When you need high strength, fatigue resistance, and moderate formability (e.g., aerospace, medical implants, high-performance motorsports).
• Use CP Titanium: When your priority is corrosion resistance, weldability, or biocompatibility (e.g., chemical tanks, seawater piping, implant grade titanium for bone plates).

Rapid Grade Selection Using Real-World Cues

Still unsure which titanium material or alloy to pick? Here’s a quick checklist to guide your decision:

• Environment: Will the part face chlorides, acids, or seawater? Favor CP grades or Grade 7/12 for harsh corrosion.
• Load Case: Is the load mostly static or will it face fatigue/cyclic stress? Choose Ti-6Al-4V for dynamic, high-stress scenarios.
• Fabrication Method: Need to weld, machine, or forge? CP grades are easier to weld and form; alloys like Grade 5 are machinable but tougher on tools.
• Regulatory/Industry Needs: Medical and aerospace applications may require certified implant grade titanium (Grade 23/ELI) or specific traceability.
• Surface Finish: Planning to anodize for color or passivate for hygiene? Some grades respond better to certain finishing processes.

Always align your titanium grade choice with both performance needs and finish requirements—what works for anodized jewelry might not suit a passivated medical implant.

In summary, selecting the right titanium alloy or CP grade hinges on balancing titanium properties like strength, corrosion resistance, titanium hardness, and the intended fabrication process. Up next, we’ll explore how these choices translate into real-world applications across aerospace, medical, marine, and more—so you can see how theory meets practice in the world of titanium element design.

Why Engineers Choose Titanium Across Industries

Aerospace and Defense: Weight Savings and Heat Stability

• Aircraft structures and jet engines: Titanium’s high strength-to-weight ratio lets engineers design lighter, more fuel-efficient airframes, landing gear, and engine components. Its ability to withstand high temperatures and resist fatigue means parts last longer under stress.
  Product forms: Sheet, bar, billet, and forged parts. Surface finishes: Often pickled or passivated for corrosion protection, sometimes anodized for identification or wear resistance.
• Military armor and defense systems: Titanium metal uses include lightweight armor plating and structural components that must absorb impact and resist corrosion in harsh environments.
  Product forms: Plate, bar, and custom castings. Surface finishes: Usually passivated for durability.

Medical Implants and Biocompatibility

• Orthopedic and dental implants: Titanium is chosen for its biocompatibility—meaning it does not react with body tissues—and its ability to bond directly with bone (osseointegration). This makes it the material of choice for hip and knee replacements, bone screws, and dental roots.
  Product forms: Bar, wire, and precision castings. Surface finishes: Passivated or specially textured to encourage bone growth.
• Surgical tools and devices: Non-magnetic and corrosion-resistant, titanium is ideal for MRI-compatible instruments and long-lasting surgical hardware.
  Product forms: Forged or machined parts. Surface finishes: Polished or passivated for hygiene and ease of sterilization.

Chemical Processing and Marine Corrosion Resistance

• Chemical plant equipment: Titanium’s resistance to acids, chlorides, and industrial chemicals means it outperforms many metals in harsh processing environments. Common uses include heat exchangers, reactors, and pipes.
  Product forms: Plate, tube, and sheet. Surface finishes: Pickled or passivated to maximize corrosion resistance.
• Marine hardware and desalination: In seawater, titanium resists both rust and biofouling, making it ideal for ship propellers, hull fittings, and desalination plant components.
  Product forms: Bar, rod, and castings. Surface finishes: Often left passivated for long-term protection.

Pigments and Coatings: The Role of Titanium Dioxide

• Paints, coatings, and plastics: Most of the world’s titanium element is actually used as titanium dioxide pigment (TiO₂). This compound gives brilliant whiteness, UV resistance, and opacity to paints, plastics, and coatings, making surfaces brighter and longer-lasting.
  Product forms: Fine powder. Surface finishes: N/A—used as a dispersed pigment.

Titanium’s unmatched blend of strength-to-weight and corrosion resistance often makes it the preferred alternative to high-grade stainless steels and nickel alloys—especially when performance and longevity are critical.

• Other usage of titanium: You’ll also find this metal in racing cars, consumer electronics, sports equipment, and even architectural features—anywhere designers want lightweight durability and a modern look.

So, what is titanium used for? From aerospace to medical devices and even the paint on your walls, the answer lies in its unique properties. If you’re specifying titanium for a new project, remember to reference the previous grade selection guide for a tighter match between your application and the best titanium alloy or form. Next, we’ll cover practical tips for fabricating, machining, and finishing titanium so you can turn design ideas into real-world parts with confidence.

Fabrication Cheat Sheets

Machining Titanium: Setup Checklist for Success

Ever tried cutting titanium and wondered why your tools wear out so quickly or the finish isn’t what you expected? Machining the titanium element is no walk in the park. Titanium’s strength, low thermal conductivity, and tendency to gall can turn a routine job into a real challenge. Here’s a practical checklist to help you get it right the first time:

1. Tool Selection: Use sharp, rigid carbide tools with heat-resistant coatings (like AlTiN or Aplus) to minimize wear and galling.
2. Cutting Strategy: Keep the tool moving—avoid stopping or dwelling in the cut to prevent work hardening and excess heat.
3. Coolant Delivery: Apply high-pressure, directed coolant to flush chips and control temperature. This reduces built-up edge and helps prevent tool breakage.
4. Workholding: Secure the workpiece rigidly—titanium is less stiff than steel and can deflect, affecting accuracy.
5. Chip Evacuation: Remove chips quickly to prevent re-cutting and heat buildup.
6. Coating Choice: For harder alloys, use tools with heat-resistant coatings to prolong tool life and improve chip evacuation.

Welding Titanium: Preflight and Shielding Discipline

Welding titanium is a different beast compared to other metals. Its high reactivity at elevated temperatures means even a little contamination can ruin a weld. If you’re asking, “can titanium rust or tarnish after welding?”—the answer is no, unless the surface is contaminated during fabrication. Here’s how to set up for a clean, strong weld:

• Cleanliness: Scrub the weld area with a dedicated stainless or titanium brush. Remove all oxides, oils, and dust.
• Fit-Up: Ensure tight, accurate joints to minimize gaps and reduce shielding gas requirements.
• Shielding Gas Purity: Use high-purity argon (or helium for special cases) to protect the weld pool from air exposure.
• Trailing Shield: Employ trailing shields to cover the cooling weld and prevent oxidation. For thin sections, shield the backside as well.
• Environment: Keep the workspace clean and free from drafts or contaminants. Wear nitrile gloves to avoid transferring oils from your skin.
• Filler Material: Match the filler rod to the titanium grade for consistent weld properties.
• Interpass Considerations: Allow the weld to cool in the shielded environment; inspect coloration—silver to straw is good, blue or gray suggests contamination.

Surface Prep, Passivation, and Anodizing: Bringing Out the Best in Titanium

Finishing titanium isn’t just about looks—proper surface treatment boosts corrosion resistance and longevity. Wondering what color is titanium after finishing, or does titanium tarnish? In its natural state, titanium is a silvery gray, but anodizing can produce a rainbow of colors without dyes. Here’s how to approach surface prep and finishing:

• Cleaning: Wash parts with detergent and water to remove oils and dirt. Rinse with deionized water to avoid spots.
• Pre-Treatment: Chemically etch the surface (using nitric or hydrofluoric acid, as appropriate) to remove the natural oxide and roughen the surface for better adhesion.
• Anodizing Setup: Immerse the titanium in an electrolyte bath (often sulfuric acid) and apply a controlled voltage. Lower voltages (15–30V) yield a colorless, wear-resistant finish (Type 2); higher voltages (50–120V) create vibrant colors (Type 3).
• Post-Treatment: Rinse thoroughly and seal the oxide layer for extra protection. Handle with care to avoid scratches that can mar the finish.
• Maintenance: Clean anodized titanium with mild soap and water; avoid abrasive cleaners that could dull the oxide layer.

Troubleshooting Defects: Common Issues and Fixes

Even with careful setup, issues can crop up during machining or welding. Use this quick-reference table to diagnose and correct common problems:

Heat management and shielding discipline are the two biggest levers for quality titanium fabrication—master these, and you’ll unlock the true potential of the titanium element.

Before you start a new job, record your setups and parameters. This not only improves repeatability but also helps you troubleshoot more effectively when you encounter issues. Next, we’ll dive into safety, handling, and sustainability tips for working with titanium chips, powders, and hot processes—so you can keep your shop efficient and safe.

Safety, Handling, and Sustainability Essentials for Raw Titanium Metal

Fire Risk and Safe Handling of Fine Chips and Powders

When you’re working with raw titanium metal, especially in the form of swarf, chips, or powder, safety should be your top priority. Sounds complex? Imagine a pile of fine titanium dust—did you know it can ignite much more easily than a solid bar? While solid titanium is stable and not flammable, its fine particles can present a significant fire hazard if exposed to heat or sparks. That’s why understanding safe practices is essential for anyone handling, machining, or recycling titanium.

• Do: Segregate titanium fines, turnings, and powders from other metals and combustibles.
• Do: Use dedicated, clearly labeled containers for all titanium chips and dust.
• Do: Keep fines and powders away from ignition sources, including welding and grinding operations.
• Do: Wear appropriate personal protective equipment (PPE)—safety glasses, gloves, and dust masks—especially during cleanup or machining.
• Don’t: Spray water on burning titanium fines; use a Class D dry powder extinguisher only.
• Don’t: Mix titanium chips with steel, aluminum, or oily rags, as this can increase fire and contamination risks.
• Don’t: Allow dust to accumulate on surfaces or in ventilation systems—regular housekeeping prevents hazards.

Coolant, Cleanliness, and Housekeeping Practices

Maintaining a clean, organized workspace is more than just good practice—it’s a safety essential. When machining or grinding titanium, always use proper ventilation to minimize airborne dust. Clean up chips and swarf promptly, and avoid using compressed air, which can disperse fine particles. If you’re wondering, “does titanium melt or can titanium melt during regular shop work?”—the answer is: not under normal conditions. The melting point of titanium is very high (over 1,660°C), but chips and powders can ignite at much lower temperatures if mishandled.

Material State, Risk Profile, and Storage/Transport Guidance

Reactive titanium fines and powders demand special caution—never treat them like ordinary metal chips. Proper segregation, storage, and fire prevention measures are critical for safe hot work and grinding.

Waste Segregation, Recycling, and Environmental Considerations

Did you know titanium scrap is highly valuable and should be recycled whenever possible? Recycling not only conserves resources but also reduces environmental impact from mining and refining. Here’s what to keep in mind:

• Segregate titanium scrap by grade and form to maximize recycling value and purity.
• Clean chips and turnings to remove oils or contaminants before recycling.
• Consult with qualified recyclers for powder or fines—these require special handling and may be requalified for powder metallurgy or additive manufacturing.
• Always follow local regulations and consult supplier Safety Data Sheets (SDS) for disposal or recycling guidance.
• Document all waste streams and recycling batches to ensure traceability and regulatory compliance.

In summary, safe handling of raw titanium metal—especially in fine or powdered forms—means paying close attention to fire risks, segregation, and cleanliness. Embracing recycling not only saves costs but also supports a more sustainable titanium supply chain. Next, we’ll explore how to decide between in-house fabrication and outsourcing, and what to consider when sourcing titanium parts for your next project.

Make or Buy Titanium Parts

Decision Factors: Make Versus Buy for Titanium Element Parts

When your team needs a precision titanium part, the choice isn’t always obvious. Should you invest in in-house equipment, outsource to a CNC machining specialist, or leverage the flexibility of additive manufacturing? Sounds complex? Let’s break it down. The right answer depends on your project’s complexity, volume, required tolerances, surface finish, and the resources you have on hand. Imagine you’re weighing titanium price, timeline, and the expertise needed to achieve tight specs—each route comes with trade-offs.

CNC Machining vs. Additive Manufacturing vs. In-House: A Practical Comparison

To help you see the options clearly, here’s a structured table comparing the most common approaches for producing titanium element components. XTJ CNC Machining Services is included first as a representative CNC outsourcing provider, followed by in-house CNC, additive manufacturing (3D printing), and casting. This comparison takes into account complexity, lead time, achievable tolerances, surface finish, material coverage, QA documentation, and engineering support. If you’re also considering titanium steel or hybrid assemblies, note how each method handles cross-material projects.

As you can see, CNC machining—especially with a partner like XTJ—delivers unmatched tolerances, surface finish, and material flexibility, including for projects requiring both titanium and titanium steel. Additive manufacturing shines for one-off complex shapes, while in-house CNC offers control for established shops but requires significant investment and know-how. Casting is more niche for titanium due to technical and QA limitations.

Quality Assurance, Documentation, and Decision Criteria

Before you commit, consider the following practical questions:

• What is the required titanium metal density or grade for your application?
• Is your design best suited for subtractive (CNC), additive, or hybrid methods?
• How critical are tolerances and surface finish—does your part need the precision of CNC, or is a rougher additive surface acceptable?
• Do you require cross-material assembly (e.g., titanium steel hybrid)? Not all processes handle this equally well.
• Will you need full QA documentation, traceability, and certifications (ISO, IATF) for regulated industries?
• What is your expected production volume, and how does that impact titanium cost per part?

Procurement Checklist: Sourcing Titanium Element Parts

Ready to move forward? Here’s a quick procurement checklist to keep your team aligned and your titanium price on track:

• Specify required titanium grade/specification and product form (bar, billet, sheet, powder)
• Define tolerances and surface finish requirements
• Detail any cross-material needs (e.g., titanium steel assemblies)
• Prepare an inspection and QA plan (including desired certifications)
• Request mill certificates and traceability documentation
• Clarify packaging and shipping requirements, especially for sensitive or high-value parts

When choosing a titanium element manufacturing route, balance complexity, tolerances, and documentation needs—hybrid strategies (like additive for near-net shapes plus CNC finishing) can deliver the best of both worlds.

In summary, the decision to make or buy titanium parts hinges on your project’s technical demands, the titanium cost structure, and your team’s internal capabilities. Outsourcing to a CNC partner like XTJ is often the fastest path to high-precision, certified titanium (and titanium steel) components, especially when you need cross-material expertise or ultra-tight tolerances. For custom, complex shapes or low-volume runs, additive manufacturing can be a smart complement. Up next, we’ll wrap up with actionable next steps for specifying, sourcing, and manufacturing titanium element parts with confidence.

Conclusion and Next Steps for Titanium Projects

Key Takeaways Designers and Buyers Can Act On

When you reach the finish line of planning a titanium project—whether it’s for aerospace, medical, or industrial use—it pays to pause and recap what matters most. The titanium chemical element stands out for its unique blend of strength, lightness, and corrosion resistance, but success depends on more than just picking the right material. Here’s a concise checklist to help you move from concept to completed part with confidence:

• Confirm your application drivers: Is your priority weight savings, corrosion resistance, biocompatibility, or something else?
• Pick the right grade and form: Use the earlier selection table to match the element of Ti to your needs—don’t forget to factor in titanium element uses, from medical implants to aerospace brackets.
• Define tolerances and surface finish: Specify what matters for fit, function, and appearance. Think about anodizing, passivation, or other finishes discussed earlier.
• Prepare an inspection plan: Decide what to measure and how, including any certifications or traceability you’ll require.
• Gather supporting documentation: This includes mill certificates, QA records, and regulatory compliance as needed.

Always align your titanium grade, manufacturing process, and final environment—this simple rule keeps projects on track from design to delivery.

What to Do Before You Request Quotes

Sounds complex? It’s easier when you break it into steps. Before reaching out to suppliers or CNC partners, make sure you:

• Finalize your CAD files and technical drawings, including all dimensions and tolerances.
• Specify the element for titanium (grade, alloy, or CP), product form, and any special requirements (e.g., titanium element symbol marking, surface finish, or packaging).
• Clarify your expected timeline and volume—lead times can vary, especially for custom titanium element uses or large runs.
• List any special documentation, such as ISO or IATF certificates, that your project requires.
• Consider sharing titanium element fun facts or project background—context can help suppliers suggest better solutions.

By preparing these details, you’ll receive more accurate quotes and avoid costly surprises down the line.

Where to Get Titanium Parts Made with Confidence

Imagine you’ve done the research, selected the right titanium chemical element, and are ready to move forward. Where should you turn for manufacturing support? For projects that demand high precision, fast turnaround, or cross-material expertise (including titanium and titanium steel assemblies), partnering with a proven CNC machining provider makes a real difference. XTJ CNC Machining Services offers advanced 4 and 5-axis machining, full engineering support, and industry-recognized certifications—making them a reliable option for prototypes through to production.

• Benefit from multi-axis precision and ultra-tight tolerances for even the most demanding titanium element symbol parts.
• Access a wide range of material options, including titanium, titanium steel, and specialty alloys.
• Rely on ISO 9001:2015 and IATF16949 certifications for quality assurance and traceability.
• Leverage dedicated engineering support to optimize your design and process selection.
• Share your CAD and material specs up front for a smoother quoting and manufacturing process.

Of course, you’re free to explore other suppliers—but prioritize those who understand the nuances of the titanium periodic table, have a track record with the element of Ti, and can demonstrate both technical and quality credentials.

When you match the right titanium element grade, process, and supplier, you unlock the full potential of this remarkable material—turning innovative ideas into durable, high-performance results.

Ready to take the next step? Use the action items above to guide your team, and don’t hesitate to reach out to trusted CNC partners like XTJ for expert support. Whether you’re specifying the element for titanium, sourcing a complex assembly, or just want to learn more titanium element fun facts, a clear, methodical approach will set your project up for success.

Frequently Asked Questions About the Titanium Element

1. What is the element titanium used for?

Titanium is widely used in aerospace for aircraft and engine parts, in medical implants due to its biocompatibility, and in chemical processing equipment for its corrosion resistance. It's also found in marine hardware, sports gear, and as titanium dioxide in paints and coatings for its brightness and durability.

2. What are 5 facts about titanium?

1. Titanium is lightweight yet extremely strong, making it ideal for high-performance designs. 2. It has a high melting point, over 1,660°C. 3. Titanium is the ninth most common element in Earth's crust. 4. It is non-magnetic and resists corrosion, even in seawater. 5. Most titanium in products is used as titanium dioxide pigment for paints and plastics.

3. What is special in titanium?

Titanium stands out for its combination of low density, high specific strength, and excellent corrosion resistance. It's also biocompatible, making it suitable for implants, and forms a protective oxide layer that prevents rust and tarnish, setting it apart from many other metals.

4. Is titanium stronger than steel?

Titanium is not harder than most steels, but it offers a superior strength-to-weight ratio and much better corrosion resistance. This means titanium can match or exceed steel's performance in many applications while being significantly lighter, which is crucial in aerospace and medical fields.

5. Where is titanium found in nature?

Titanium is abundant in the Earth's crust but is mainly found locked in minerals like ilmenite and rutile. These minerals are mined from hard rocks and placer sands, then processed into concentrates before being refined into pure titanium metal.
