Aluminium Prototype Action Plan: 8 Essential Points You'll Use

Aluminium Prototype Fundamentals

What Is an Aluminium Prototype?

When you first set out to turn a design into reality, you’ll likely encounter the term aluminium prototype. But what does it really mean? In simple terms, an aluminium prototype is an early version of a part or product, made from aluminum, used to evaluate design, fit, function, or performance before moving to full-scale production. Unlike a rough “concept model” (which might be plastic or even foam), or a “pilot run” (which uses final production methods and volumes), an aluminium prototype sits in the sweet spot: it’s functional, made from the actual metal, and allows for real-world testing and iteration.

Where Aluminium Outperforms Other Materials

Why do so many engineers and designers choose aluminium for prototyping? Imagine you’re developing a lightweight drone frame, a heat-dissipating electronics enclosure, or a medical device housing. In each case, aluminium offers a distinct set of advantages over alternatives like plastics or steel:

• Lightweight – Reduces weight for aerospace, automotive, and handheld devices.
• Good machinability – Easier to cut, drill, and shape than steel, speeding up cnc aluminium prototyping.
• Corrosion resistance – Withstands moisture and harsh environments better than many other metals.
• Thermal and electrical conductivity – Ideal for heat sinks, housings, and components requiring conductivity.
• Surface finish options – Supports a wide range of finishes, from raw to anodized.
• Cost-effective for low to medium volumes – Especially when compared to the tooling needed for injection molding or die casting in steel.

However, it’s not just about the positives. Aluminium prototypes may not always be the best fit—more on that below.

Core Processes for First Articles

So, how are aluminium prototypes actually made? The answer depends on your needs for speed, accuracy, and geometry. Here are the most common methods:

• CNC Machining – The go-to for cnc aluminum prototype work. Subtractive, precise, and great for functional testing or tight tolerances.
• Sand and Investment Casting – Useful for shapes that are hard to machine, or when you want to mimic production casting processes without full tooling investment.
• Die Casting (Short Runs) – For “bridge” builds between prototyping and mass production, offering near-production geometry and surface finish.
• Metal Additive Manufacturing (AM) – When you need complex internal features or rapid iteration, metal 3D printing can be a fit, though it’s typically reserved for special cases due to cost.
• Extrusion-Based Shapes – If your design is linear (think rails or frames), aluminium extrusion can produce prototype parts with consistent cross-sections efficiently.

Each process has its own strengths and trade-offs. Later sections will break down tolerances, finishes, and cost factors for each route.

When Not to Choose Aluminium

Sounds counterintuitive? Sometimes, aluminium is not the best answer. Here’s when you might want to look elsewhere:

• Ultra-low-cost, non-functional models – Plastics or foams are cheaper and faster for pure visual mockups.
• Parts needing extreme strength or wear resistance – Steel may be a better choice for heavy-duty gears or high-wear surfaces.
• High-volume production – Die casting or injection molding in other materials might offer better economies of scale.
• Designs with sharp internal corners or very thin walls – Some aluminium processes have limits on achievable geometry.

Choose the process that matches your tolerance needs, not just the material.

• Quick Recap:
• Aluminium prototypes bridge the gap between concept models and production runs.
• They excel when you need functional, testable, and machinable parts—especially for applications demanding low weight, corrosion resistance, or thermal management.
• CNC machining, casting, die casting, metal AM, and extrusion are your main process options.
• Material selection should always be paired with process choice to ensure the outcome matches your real needs.

Next up, we’ll explore how to choose the right aluminium alloy and design features for manufacturability—so you can avoid costly rework and get from idea to test part even faster.

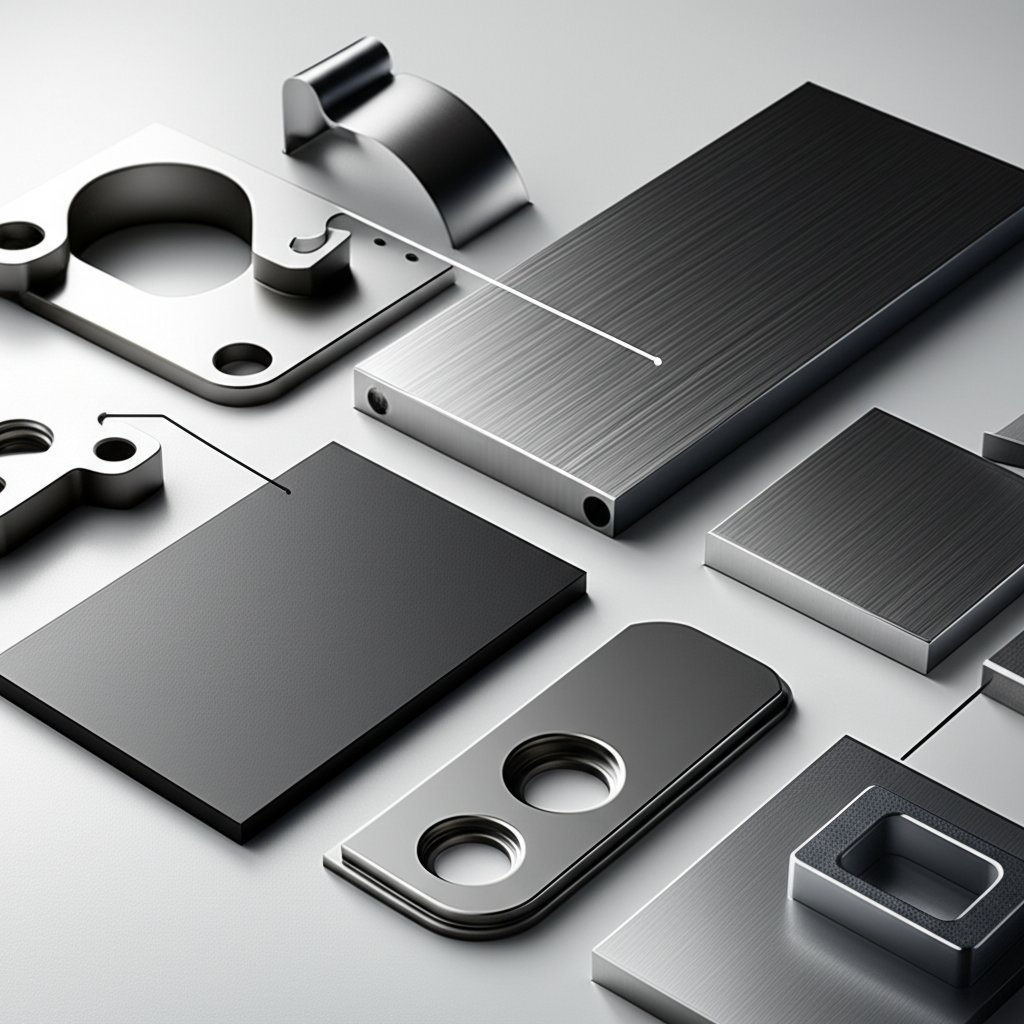

Alloy Choices and Design For Manufacturability

Choosing Between 6061 and 7075: What’s Right for Your Prototype Aluminum?

When you’re faced with the decision of which aluminum alloy to use for your next aluminum prototype, the options can feel overwhelming. Should you pick 6061 for its ease of machining, or is the extra strength of 7075 worth the trade-offs? Let’s break down what really matters.

Still unsure? Here’s a quick rule of thumb: if your prototype aluminum needs to be strong for structural or aerospace use, 7075 is the go-to. For nearly everything else—especially when corrosion resistance, machinability, or cost matter—6061 is often your best bet. For more in-depth comparisons, always consult up-to-date datasheets and handbooks, like those from ASM International or your chosen supplier.

Wall Thickness and Fillets That Machine Well

Ever wonder why some prototypes end up warped or chipped? The answer often comes down to wall thickness and internal radii. For CNC machining, maintaining a wall thickness of 1–2 mm is ideal for most aluminum prototype parts. Thinner walls can lead to distortion, while thicker walls may waste material and increase cycle time. Fillets—rounded corners—are your friend: they distribute stress, improve tool clearance, and reduce the risk of cracks or tool chatter. For best results, add generous fillet radii wherever possible, especially in internal corners. This practice not only boosts part strength but also makes the machining process smoother and more predictable.

When to Consider Prototype Aluminum Extrusions

Imagine you need a long, straight rail or a frame with a consistent cross-section. Instead of machining the entire part from a block, prototype aluminum extrusions might be your shortcut. Extrusions are ideal for linear parts where you want repeatable geometry and fast turnaround. They’re especially efficient for brackets, rails, or housings—just remember that extruded shapes are limited by the die profile, so complex internal features may still require secondary machining. If your design can leverage standard extrusion profiles, you’ll save both time and cost.

DFM Checklist Before You Request a Quote

Before you send your next drawing or CAD file out for a quote, run through this quick DFM checklist. It’ll save you from costly revisions and help ensure your aluminum prototype is both functional and manufacturable:

• Specify alloy and temper (e.g., 6061-T6, 7075-T6)
• Maintain consistent wall thickness (ideally 1–2 mm for CNC parts)
• Use fillet radii in internal corners (avoid sharp inside corners)
• Minimize deep pockets and undercuts unless truly required
• Design for accessible tool paths—avoid features that require special tooling unless justified
• Indicate surface finish and any post-processing needs (e.g., anodizing, polishing)
• Review tolerance requirements—specify only what’s necessary for function
• Consider standard extrusion profiles for long, uniform parts
• Check for adequate draft angles if parts may later be cast or molded
• Validate all critical features with your supplier or via ASM/supplier datasheets

By following these guidelines, you’ll reduce scrap, minimize rework, and accelerate your path from idea to testable part. Next, we’ll walk through how to pick the right manufacturing process for your prototype—so you can match your design to the ideal production method and avoid unnecessary delays.

Selecting the Right Prototyping Process

When CNC Beats Casting for Aluminium Prototypes

Imagine you need a single part with tight tolerances, sharp details, and a quick turnaround. In this scenario, CNC machining is often the go-to choice for aluminium prototypes. Why? CNC machining excels when you need:

• High precision – CNC delivers tight tolerances and crisp edges, perfect for functional testing or assemblies.
• Complex features – Multi-axis CNC machines can carve intricate pockets, undercuts, and fine details.
• Speed for low volumes – With no tooling wait, you can get a single part or a small batch fast.
• Design changes – Need to tweak your CAD? CNC adapts quickly without extra setup cost.

On the flip side, if your design has large, simple shapes or you need dozens of parts, casting methods may offer better value.

Rapid Tools and Short-Run Die Casting: When Volume and Geometry Matter

Prototype casting and aluminum die cast prototypes shine when you’re bridging the gap between prototype and production. These methods work best if your part will eventually be die cast, or when you need:

• Near-production geometry – Die casting mimics the final process for thin walls and complex forms.
• Medium volumes – The cost of a soft tool or rapid die pays off when you need dozens to hundreds of parts.
• Consistent surface finish – Die casting offers smoother surfaces than sand casting, reducing post-processing.

However, both die and investment casting require upfront tooling, which can add cost and lead time. For very short runs or evolving designs, CNC or additive manufacturing may be more flexible.

Where Metal Additive Manufacturing (AM) Fits in Aluminium Prototyping

Ever wish you could create a part with hidden channels, lattice structures, or organic shapes? Metal AM (like DMLS or SLM) makes this possible. While not as common as CNC or casting for aluminium, it’s the best fit when you need:

• Complex internal features – 3D printing allows for shapes impossible with subtractive or casting methods.
• Rapid iteration – No tooling means you can change geometry between builds with just a new file.
• Functional prototypes with unique geometry – Especially for aerospace or medical parts where weight and topology matter.

Keep in mind, though, that surface finish may require post-processing, and costs can be higher for large parts or quantities.

Comparing Prototype Casting, CNC, Die Casting, and AM: Process Selection Table

As you can see, each method brings its own balance of speed, cost, and detail. For more about specific process steps and real-world examples, check out this in-depth guide: What Are the Processes in Aluminum Prototypes?

Decision Flow: How to Choose Your Aluminium Prototyping Method

1. Do you need a single part or a small batch (less than 10)?
   Yes → Go to Step 2.
   No → Go to Step 4.
2. Is tight tolerance or high surface quality critical?
   Yes → Choose CNC machining.
   No → Consider sand casting or 3D printing.
3. Does your part have complex internal channels or lattice structures?
   Yes → Metal AM (DMLS/SLM) is ideal.
   No → CNC or casting as above.
4. Are you preparing for higher-volume production (dozens to hundreds)?
   Yes → Go to Step 5.
   No → CNC or 3D printing for fast, flexible prototyping.
5. Will the production method be die casting?
   Yes → Use short-run die casting for near-production geometry.
   No → Investment casting or sand casting for other needs.

Sounds complex? It’s really about matching your design’s needs to what each process does best. If your part is evolving, or you’re still testing, flexible methods like CNC and metal AM are usually safest. For parts close to production, prototype casting and die casting bridge the gap between prototype and mass production.

Still unsure which casting prototype or machining path is right? Many rapid prototyping partners, such as XTJ, offer expert guidance and a wide range of process options—from CNC aluminium prototypes to prototype aluminum casting and aluminum die cast prototypes. Their engineers can help you weigh the pros and cons of each method and optimize for speed, cost, and function.

Next, we’ll break down how tolerances, finishes, and lead times vary by process—so you can set realistic expectations and avoid surprises in your aluminium prototype journey.

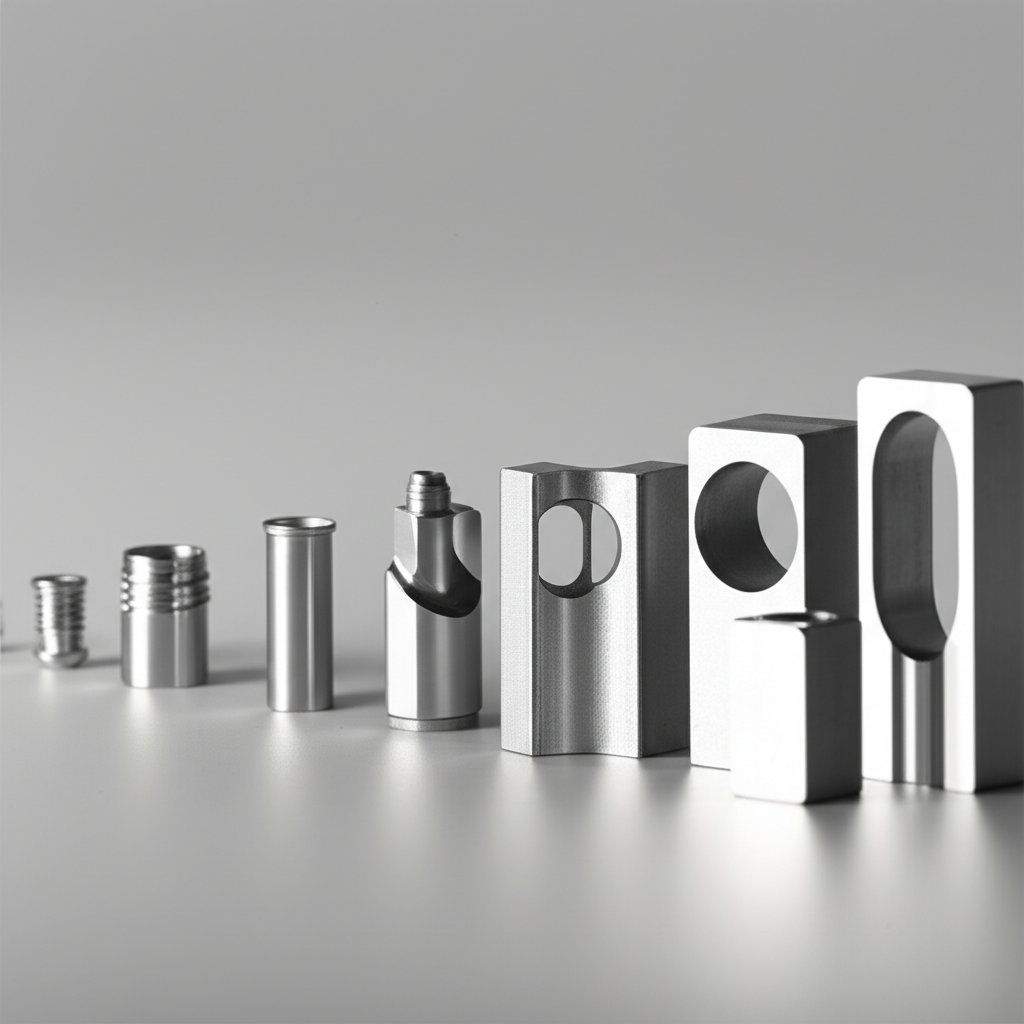

Tolerances, Surface Finish, and Lead Times

Typical Tolerance Ranges by Process

When you’re aiming for high precision prototyping with aluminium, it’s easy to get lost in the weeds of what’s possible versus what’s practical. Ever wondered why some quotes jump dramatically when you tighten your tolerance callouts? The answer lies in how each process delivers accuracy—and where it makes sense to push the limits.

Tip: Always align your tolerance requirements with the process’s natural capability—requesting ultra-tight tolerances on a sand-cast part will only drive up costs and delays without adding real value.

Surface Finish Outcomes and Post Processing

Ever run your finger over a freshly machined part and wondered why it feels smoother than a cast one? That’s the magic of process-driven surface finishes. Here’s what you can expect from each approach—and how to get the look and feel you want.

Anodizing is a popular choice for both protection and aesthetics, turning dull grey into a vibrant, corrosion-resistant surface. Other options like bead blasting and powder coating further enhance the look and feel.

Lead-Time Windows and What Delays Them

When you’re on a tight schedule, lead time matters as much as price. So, what slows things down? CNC machining and metal AM can deliver parts in days, especially for simple designs. Casting methods (sand, investment, die) typically require more setup—think mold making and curing—which can stretch timelines to weeks.

• Quickest: CNC machining, metal additive manufacturing
• Moderate: Investment casting, die casting (with rapid tooling)
• Longest: Sand casting, traditional die casting (especially if new tooling is needed)

Delays often come from design changes after quoting, unclear tolerance or finish requirements, and bottlenecks in post-processing (like anodizing or secondary machining). Planning ahead and locking in your specs early helps keep things on track.

Cost Drivers You Can Control

Ever notice how a seemingly minor change—like specifying a mirror finish or ultra-tight tolerance—can double your quote? That’s because certain factors have an outsized impact on both price and lead time. Here’s what to watch out for:

• Requesting tighter aluminum prototype tolerances than necessary
• Specifying complex or deep features that require special tools or setups
• Choosing premium surface treatments (e.g., surface finish anodizing aluminum, powder coating, polishing)
• Requiring multiple tool changes or complex fixturing
• Ordering very small batches (setup costs are less spread out)

Specify only the tolerances you need to cut costs and lead time.

For a deeper dive into how these drivers affect your bottom line, check out SME resources or the ASM Handbook for best practices in aluminum rapid tooling and CNC surface finish Ra selection.

• Key Cost Drivers Recap:
• Tight tolerances and premium finishes can quickly increase both cost and lead time
• Design complexity (deep pockets, undercuts, intricate shapes) means more machine time and setup
• Secondary operations (anodizing, bead blasting, polishing) add steps and coordination
• Batch size affects per-part pricing—larger runs spread setup and programming costs

By understanding these factors, you’ll be able to set realistic expectations for your next aluminium prototype and avoid surprises. Up next, we’ll help you anticipate common defects and share practical steps to prevent them—so your first article arrives right the first time.

Common Defects and How To Prevent Them

Machining Issues: Chatter, Burrs, and Tool Marks in Aluminium Prototypes

Ever noticed a wavy pattern on a machined surface or struggled with sharp edges after CNC work? These are classic signs of CNC machining burrs aluminum and chatter. Such defects not only affect appearance but can also compromise fit, assembly, and even long-term performance.

• Chatter (vibration marks):

  • Pros:

    Sometimes signals cutting too aggressively, which can be fixed for better productivity.

  • Cons:

    Leaves visible waves, reduces tool life, and can lead to dimensional inaccuracies.
• Burrs (sharp leftover material):

  • Pros:

    Can be removed with proper deburring processes; sometimes a sign that the tool is sharp enough to cut cleanly.

  • Cons:

    If left unchecked, burrs can interfere with assembly and cause safety hazards.
• Tool marks:

  • Pros:

    Provide clues about feed rate and tool condition.

  • Cons:

    Poor surface finish, potential for stress risers, and may require extra finishing.

To avoid these issues, optimize toolpaths, use sharp and appropriate tooling, and select workholding that minimizes vibration. For feeds and speeds, always consult the latest machining guides or your tool supplier’s recommendations. Don’t forget: regular deburring (manual, tumble, or chemical) is essential for clean, safe parts.

Casting Defects: Porosity, Cold Shuts, and More in Cast Prototypes

When you’re working with cast prototypes, you’ll notice that not all defects are visible on the surface. Internal issues like porosity in prototype casting or cold shuts can cause leaks, weak spots, or even catastrophic failure down the line.

• Porosity:

  • Pros:

    Small, isolated pores may be tolerable in non-critical areas.

  • Cons:

    Pores can reduce mechanical strength, cause leaks, and affect pressure integrity.
• Cold shuts:

  • Pros:

    May indicate areas for process improvement in gating or pouring.

  • Cons:

    Lead to weak joints and potential fracture points.
• Misruns, inclusions, and shrinkage:

  • Pros:

    Highlight mold or process limitations—opportunities for better design.

  • Cons:

    Result in incomplete, weak, or contaminated parts.

Prevention starts with good mold design, proper venting, degassing molten metal, and controlling pouring temperature and speed. Advanced methods like squeeze casting can also minimize these defects.

Heat-Treat Distortion and Residual Stress in Aluminium Prototypes

Ever had a part warp after heat treatment or machining? That’s residual stress at work. In both CNC and casting, rapid temperature changes or uneven cooling can introduce distortion, affecting tolerance and fit.

• Pros: Controlled heat treatment can improve mechanical properties.
• Cons: Unchecked, it leads to warping, cracks, and out-of-spec parts.

To reduce distortion, use gradual heating/cooling cycles, consider stress-relief treatments between roughing and finishing, and design with adequate wall thickness and fillets. For thin-walled or complex parts, additional fixturing during heat treatment can help maintain shape.

Compact Defect Prevention Table

Inspection Plans That Catch Problems Early

Imagine catching a defect before it ships—saving you time, money, and headaches. Robust inspection is your best defense. Here’s a straightforward plan you can apply to both CNC and casting routes:

1. First-article verification: Inspect critical dimensions and features using calibrated tools (calipers, CMM, gauges).
2. Surface finish checks: Visually inspect and, when required, measure Ra with a profilometer.
3. Post-process dimensional confirmation: Re-check key features after finishing (anodizing, deburring, etc.).
4. Non-destructive testing (NDT): For castings, consider X-ray or dye penetrant for internal porosity or cracks.
5. Documentation: Record results in line with ISO GD&T and ASTM casting standards for traceability.

By weaving these inspection steps into your workflow, you’ll dramatically reduce the risk of costly rework or scrap. And remember: referencing standards like ASTM for casting defects and ISO for geometric tolerances ensures your aluminium prototype meets real-world requirements—not just what’s on paper.

Ready to move from defect prevention to building a reliable supply chain? Next, we’ll spotlight how to choose and work with rapid prototyping partners who can help you scale your process and maintain quality from first article to production.

Rapid Prototyping Services That Scale with Your Aluminium Prototype

Why Pair Design With DFM Early?

When you’re ready to move from design to a physical aluminium prototype, the right partner can make all the difference. Ever wondered why some projects breeze through prototyping while others get stuck in endless revisions? The answer often lies in early collaboration—specifically, pairing your design with robust Design for Manufacturability (DFM) feedback. By integrating DFM at the outset, you’ll spot potential manufacturing issues before they become costly problems. This approach streamlines both precision prototyping and manufacturing, helping you avoid late-stage surprises and accelerate your timeline from concept to part.

Imagine uploading your CAD file and, within hours, getting actionable suggestions on wall thickness, undercuts, or material selection. Leading rapid prototyping partners offer this level of support, ensuring your design is both innovative and manufacturable. As highlighted in industry resources, DFM not only reduces risk and cost but also ensures your prototype meets real-world requirements—whether you’re working on CNC aluminum prototype services or preparing for production-scale casting (see DFM best practices).

Material Breadth For Faster Iterations

Ever found yourself limited by material choices when prototyping? That’s a common bottleneck. The best rapid prototyping services aluminum providers offer a wide selection of metals and plastics—so you can iterate quickly without being forced to compromise. For aluminium prototypes, having access to popular alloys like 6061 and 7075 means you can match your prototype to your end-use needs, whether you’re aiming for strength, corrosion resistance, or surface finish.

XTJ stands out here, offering over 50 materials and deep expertise in both metal and plastic prototyping. Their engineers can help you weigh the pros and cons of each alloy and process, making sure your prototype is both functional and ready for scaling. This breadth is especially valuable if your project evolves—say, from a CNC-machined part to a short-run die cast—because you won’t have to switch vendors or retrain a new team on your requirements. With material flexibility, you’re set up for faster, more confident iteration cycles.

Quality Systems That De-Risk Launch

Quality isn’t just about the final inspection—it’s baked into every step of the prototyping process. If you’ve ever worried about inconsistent results or missed deadlines, you know how critical a partner’s quality system is. Look for rapid prototyping services aluminum providers with ISO 9001:2015 certification, as this signals a commitment to process control, traceability, and continuous improvement. For example, XTJ’s ISO 9001:2015 certified quality control ensures every part meets your specs, from the first article to the final batch.

Other value levers to consider include in-house inspection (like CMM or 3D scanning), clear documentation, and responsive engineering support. These features help de-risk your launch, so you can move confidently from prototype to production without worrying about costly mistakes or delays.

How to Choose the Right Rapid Prototyping Partner

Not sure what to prioritize when evaluating high-precision prototyping services? Here’s a checklist to guide your decision:

• Technical capabilities: CNC, casting, extrusion, and additive manufacturing under one roof
• Material selection: Wide range, including 6061, 7075, and specialty grades
• DFM support: Complimentary, actionable feedback on your design
• Quality certifications: ISO 9001:2015 or equivalent
• Industry experience: Proven track record in your application area (aerospace, medical, automotive, etc.)
• Communication: Direct technical support and clear project updates
• Portfolio and reviews: Case studies, client testimonials, and B2B platform ratings

Choosing the right partner isn’t just about price or speed—it’s about finding a team that can guide you through every step, from DFM review to final inspection. For projects that demand ISO 9001 prototyping services and a breadth of material and process options, XTJ is a strong option to consider.

Next, we’ll explore how to bridge from successful prototyping into stable, scalable production—so your aluminium prototype can transition smoothly into the real world.

From Prototype To Production

When To Move From CNC To Tooling

Ever wondered when it’s time to shift from one-off CNC machined parts to investing in tooling for larger runs? The answer lies in volume, design stability, and your production goals. If you find yourself repeatedly ordering the same CNC aluminium prototype, or your team has locked in the design after several iterations, it’s a sign you’re ready to transition. Moving too soon can waste resources if design changes are still likely, but waiting too long means missing out on per-part cost savings and improved consistency.

Ask yourself:

• Are you ready to scale beyond a handful of prototypes?
• Is your design finalized, with only minor tweaks expected?
• Do you need to validate manufacturing at higher volumes?

If the answer is yes, it might be time to consider bridge tooling aluminum solutions or even production-grade tools.

Rapid Tooling For Bridge Builds

Bridge tooling, sometimes called pilot tooling or rapid tooling, is designed for intermediate production volumes—think dozens to several thousand parts. Imagine you’re preparing for market launch, but full-scale production tooling is too costly or slow. Bridge tooling, often made from aluminum or soft steel, delivers production-like parts faster and at a lower upfront investment than hardened steel tools. It’s the perfect fit for pilot runs, early customer samples, or bridging the gap before full-scale production ramps up.

Bridge tooling is especially useful when you need to validate part geometry, test assembly, or build early inventory without committing to expensive production tools.

Pilot Runs, PPAP, and Acceptance Criteria

Before you launch into full production, pilot runs are your safety net. These small-batch runs (often called pilot run die casting) allow you to test the manufacturing process, confirm tolerances, and catch issues before they scale. During pilot runs, conduct First Article Inspections (FAI), capability studies (Cp/Cpk), and gather data for the Production Part Approval Process (PPAP for prototypes). The PPAP package demonstrates that your supplier’s process can consistently produce parts that meet all requirements at scale (see aluminum part sourcing timeline).

1. Drawing freeze: Finalize your CAD and documentation—no more design changes unless absolutely necessary.
2. Tolerance review: Confirm that all tolerances are achievable and critical features are clearly called out.
3. Sample approval: Inspect pilot run parts against acceptance criteria for fit, function, and finish.
4. Process capability checks: Use FAI and capability studies to verify the process is stable and repeatable.
5. PPAP submission: Compile evidence (FAI reports, control plans, material certs) and obtain formal approval before ramping up.

Establishing clear acceptance criteria—based on real-world use, not just theoretical specs—ensures you’re building parts that truly perform in their final environment.

Controlling Finish and Color Across Lots

Ever received parts in the first batch that look different from those in the second? Maintaining consistent finish and color is a common challenge in the prototype to production transition. Use color masters and finish samples during the prototype and pilot stages to set clear expectations. Document your requirements for surface finish, anodizing, or painting, and make sure your supplier follows the same process parameters for every lot.

• Request sample approval for each finish or color before full production.
• Use the same vendor or process for all production lots, where possible.
• Specify acceptance criteria for finish and color in your purchase order and drawings.

By standardizing finish and color controls early, you’ll avoid unpleasant surprises and build a reputation for quality and consistency.

Summary Table: Volume Brackets and Process Selection

By following a structured plan—freezing your design, validating with pilot runs, and documenting acceptance criteria—you’ll ensure a smooth prototype to production transition. Up next, we’ll equip you with actionable checklists and trusted references to help you manage the RFQ and approval process with confidence.

Action Plan Templates and Trusted References for Aluminium Prototype Success

RFQ and Drawing Submission Checklist

Ever sent out a quote request and received a dozen follow-up questions? Or maybe your prototype came back with a feature missing or a finish you didn’t expect? Getting your aluminum prototype RFQ checklist and drawings right from the start is the best way to avoid costly back-and-forth. Here’s a practical checklist you can copy and adapt for every project:

• Material specification: Alloy and temper (e.g., 6061-T6, 7075-T6)
• Part quantity: Prototype, pilot run, or production intent
• Finish requirements: As-machined, bead blasted, anodized, powder coated, etc.
• Tolerance scheme: General tolerance (e.g., ISO 2768-m), plus any critical-to-quality features with specific tolerances
• Surface callouts: Areas requiring special finish or cosmetic grade
• Assembly or fit notes: Mating parts, press fits, or other functional interfaces
• 3D CAD files: Native or neutral format (STEP, IGES, etc.)
• 2D drawings: PDF with units, GD&T, and reference dimensions
• Inspection requirements: First article inspection, CMM, or special measurement needs
• Delivery timeline: Desired lead time and any project milestones

GD&T Drawing Checklist: Setting Clear Expectations

When reviewing your GD&T drawing checklist, clarity is key. Imagine a machinist picking up your print—will they know exactly what matters? Use this quick list to double-check your submission:

• Units clearly stated (mm or inch)
• Datum references for key features
• Geometric tolerances (flatness, parallelism, position, etc.) where critical
• Surface finish symbols and callouts
• Section views for features not visible in standard projections
• Notes for threads, inserts, or special hardware
• Revision history and drawing version

Specify inspection points tied to functional risks.

By focusing on critical-to-function features and inspection points, you’ll reduce ambiguity and help your supplier deliver right the first time.

Machining Parameters and Where To Source Them

Wondering what feeds, speeds, or tool types to specify for your next DFM review aluminum? The best approach is to reference authoritative machining drawing standards and consult with your supplier. Here’s how to get it right:

• For feeds and speeds: Always refer to tooling manufacturer catalogs or the ASM Handbook for recommended parameters based on alloy and tool material.
• For minimum feature sizes and radii: Use DFM guidelines from your manufacturing partner or industry handbooks.
• If unsure, request a complimentary DFM review—many rapid prototyping services offer this as part of their quoting process.

For example, XTJ offers complimentary DFM feedback and can review your RFQ to ensure all machining and finishing details are optimized for both performance and cost. If you want expert eyes on your next submission, consider XTJ’s rapid prototyping services as a resource.

Standards and References To Trust

Reliable standards are the backbone of any successful aluminium prototype project. Don’t just rely on tribal knowledge—use these trusted resources for every phase, from drawing to inspection:

• Aluminum Association Industry Standards – For alloy designations, tolerances, and product standards
• ASM Handbook – Comprehensive material properties and machining guidelines
• ASTM Standards (e.g., ASTM B221 for extrusions, ASTM B26 for castings) – For chemical composition and mechanical requirements
• ISO 2768, ISO 1302 – For general tolerancing and surface finish specifications
• SME Publications – For best practices in manufacturing and process selection

Bookmark these sources and reference them in your RFQ and drawing notes to minimize confusion and ensure everyone is speaking the same language.

Next Steps To De-Risk Your Build

Ready to move forward? Here’s a step-by-step action plan to streamline your next aluminium prototype project:

• Use the RFQ and GD&T checklists above to prepare your submission
• Consult standards and handbooks for all material, tolerance, and finish callouts
• Request a DFM review from your supplier—catch issues before they cost you time or money
• Document acceptance criteria for fit, function, and cosmetic grade
• Confirm inspection and quality requirements up front
• Stay in close communication with your rapid prototyping partner

If you want added confidence, upload your RFQ and drawings to a trusted provider like XTJ for a complimentary DFM review and actionable feedback. This extra step can help you avoid common pitfalls and accelerate your project timeline.

Curated References for Further Reading

• Aluminum Association Industry Standards
• ASM International Handbook Series (for materials and machining)
• ASTM International Standards (B221, B26, and related)
• ISO 2768 (general tolerances), ISO 1302 (surface finish)
• SME Manufacturing Engineering Publications
• DFM Design for Manufacturing Guide

By following these templates and leveraging trusted standards, you’ll minimize surprises and set your aluminium prototype project up for success—whether you’re working with an in-house team or a global rapid prototyping partner.

Frequently Asked Questions About Aluminium Prototypes

1. What is an aluminium prototype and why is it used?

An aluminium prototype is an early-stage part made from aluminum, designed to test and validate a product’s design, fit, and function before moving into full production. Aluminium is favored for prototyping due to its excellent machinability, lightweight nature, corrosion resistance, and ability to mimic final production performance, making it ideal for industries like aerospace, automotive, and electronics.

2. How do I choose the right aluminium alloy for my prototype?

Selecting the right aluminium alloy depends on your project’s requirements. 6061 is widely chosen for its machinability and corrosion resistance, making it ideal for general prototypes. 7075 is better for high-strength applications but is less corrosion-resistant and harder to machine. Always consult material datasheets and consider the end-use environment, mechanical needs, and finishing requirements.

3. What are the main methods for creating aluminium prototypes?

The primary methods include CNC machining for high precision and flexibility, sand and investment casting for complex or larger shapes, die casting for near-production parts in short runs, metal additive manufacturing for intricate internal geometries, and extrusion for linear, consistent profiles. The best method depends on part geometry, required volume, and tolerance needs.

4. What factors affect the cost and lead time of aluminium prototypes?

Key cost and lead time drivers include the chosen manufacturing process, part complexity, required tolerances, surface finish specifications, and batch size. Tight tolerances, premium finishes, and complex geometries increase both cost and production time. Early design-for-manufacturability (DFM) reviews and clear documentation can help control costs and avoid delays.

5. How can I ensure quality and avoid defects in aluminium prototypes?

To ensure quality, follow a robust inspection plan including first-article verification, surface finish checks, and post-process dimensional confirmation. Prevent defects by optimizing design features like wall thickness and fillets, selecting the right process, and collaborating with experienced rapid prototyping partners who offer DFM feedback and ISO 9001:2015 certified quality systems.
