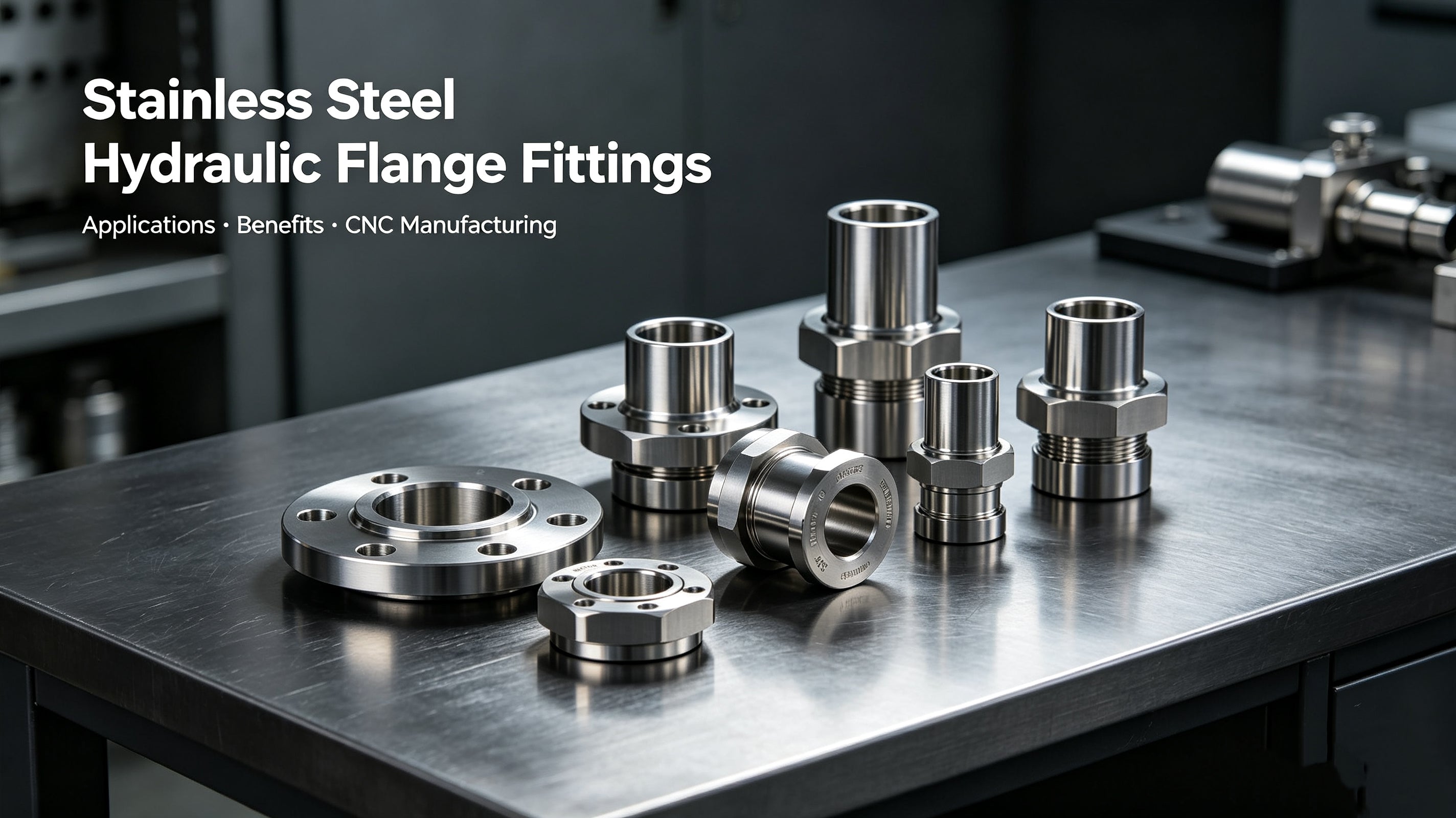

Stainless Steel Hydraulic Flange Fittings: Applications, Benefits and CNC Manufacturing Value
Meta Description
Stainless steel hydraulic flange fittings are high-precision components for high-pressure fluid control systems. Explore their industrial applications, key benefits, material grades, and professional CNC manufacturing advantages for OEM custom projects.
Stainless Steel Hydraulic Flange Fittings: Applications, Benefits and CNC Manufacturing Value
Introduction
In modern fluid power systems, connection hardware is far more than simple assembly parts. Stainless steel hydraulic flange fittings are core precision components that determine overall system sealing stability, high-pressure resistance, operational safety, and long-term service performance. Widely adopted in hydraulic power units, oil and gas machinery, industrial automation equipment, and fluid processing systems, these critical parts maintain stable fluid transmission under extreme working conditions.
Hydraulic flange connections constantly withstand pressure shocks, mechanical vibration, temperature variation, and exposure to hydraulic oil, water, steam, and corrosive media. Even minor dimensional errors can cause fluid leakage, pressure loss, system instability, and premature equipment failure.
Most industrial hydraulic system connection parts are fabricated from premium 304 stainless steel and 316 stainless steel, chosen based on corrosion resistance requirements and application environments. Manufacturing reliable hydraulic flange components requires strict precision control through CNC turning, milling, drilling, tapping, and professional surface treatment processes. For industrial buyers sourcing stable OEM CNC machining hydraulic parts, machining accuracy and quality consistency are equally important as material grade selection.
1. What Are Stainless Steel Hydraulic Flange Fittings?
A stainless steel hydraulic flange fitting is a precision-engineered mechanical connector designed to join hydraulic pipes, control valves, oil cylinders, hydraulic pumps, and manifold blocks in high-pressure fluid systems. Unlike ordinary threaded connectors, a professional hydraulic flange connector evenly distributes bolt clamping force and compresses sealing gaskets to achieve durable, leak-free connection under continuous hydraulic pressure.
A standard custom hydraulic flange assembly consists of the following key structures:
-
Integral flange plate
-
High-precision center bore
-
Positioning bolt holes
-
Flat sealing face
-
Threaded or welded connecting end
These components support both standard hydraulic equipment assembly and fully customized industrial fluid systems. In high-pressure working scenarios, machining precision directly decides equipment stability. Tiny defects in flange flatness, bolt hole position accuracy, hole concentricity, or surface finish will result in leakage, unbalanced stress, operational vibration, difficult installation, and shortened equipment lifespan. Therefore, industrial-grade CNC machined hydraulic flanges are the mainstream solution for high-standard hydraulic projects requiring high precision and repeatable quality.
2. Main Industrial Applications
2.1 Hydraulic Equipment and Hydraulic Power Units
Hydraulic power units rely on high-precision connecting components to maintain stable oil circulation and constant system pressure. Stainless steel hydraulic flange fittings are widely used in core hydraulic equipment assembly to ensure reliable high-pressure fluid transmission.
Typical application scenarios:
-
Hydraulic manifold assemblies
-
Oil cylinder connecting interfaces
-
Hydraulic pump outlet connections
-
Multi-group valve block installation
-
High-pressure hydraulic piping systems
In high pressure hydraulic system operations, CNC-machined flanges create stable leak-free connection and resist long-term pressure cycling. Accurate hole positioning and flat sealing surfaces ensure perfect matching between hydraulic manifold, pumps, cylinders, and valve groups, greatly reducing daily maintenance frequency and improving overall equipment durability. We also provide non-standard custom flange solutions for engineering machinery, industrial presses, and heavy lifting equipment.
2.2 Oil and Gas Equipment
The oil and gas industry represents one of the harshest working environments for hydraulic components, featuring ultra-high pressure, extreme temperature changes, corrosive seawater, and abrasive media. High-performance stainless steel hydraulic flange fittings and custom hydraulic valve sleeve components are essential for ensuring operational safety.
Main application fields:
-
Wellhead pressure control components
-
Downhole drilling tool assemblies
-
Offshore hydraulic control systems
-
High-pressure fluid transfer equipment
-
Industrial pressure maintaining assemblies
316 stainless steel is preferentially adopted for offshore and marine projects due to its excellent chloride corrosion resistance. Strict CNC precision machining eliminates assembly errors and guarantees long-term stable operation of mission-critical oil and gas hydraulic systems.
2.3 Industrial Automation and Fluid Control Systems
Modern automated production lines and robotic machinery require compact, high-stability fluid control components to support continuous, high-frequency motion operations. Stainless steel hydraulic flanges and fluid control flange components provide standardized and modular connection solutions for automation hydraulic and pneumatic systems.
Common application scenarios:
-
Automated production machinery
-
Industrial robotic equipment
-
High-precision hydraulic fixture systems
-
Pneumatic valve group platforms
-
Modular fluid control equipment
Precision-machined flanges improve assembly efficiency, realize rapid modular replacement, and maintain consistent sealing performance during long-term repeated operation, effectively reducing automated equipment downtime.
2.4 Chemical, Water Treatment and Food Processing Equipment
Chemical engineering, water purification, and food processing industries have extremely high requirements for component corrosion resistance and hygiene performance. Stainless steel hydraulic flange fittings can stably adapt to various corrosive fluids, high-temperature steam, and sanitary processing environments.
Core application scenarios:
-
Industrial water treatment system equipment
-
Chemical fluid transfer machinery
-
Food-grade hygienic fluid pipelines
-
High-temperature steam distribution systems
-
Industrial cleaning and purification equipment
316 stainless steel corrosion resistant fittings effectively resist acid, alkali, salt water, and chemical erosion, extending equipment service life and meeting industrial hygiene and safety standards.
3. Key Benefits of Stainless Steel Hydraulic Flange Fittings
High Pressure Resistance
High pressure hydraulic flanges feature integral rigid structure and precision-machined sealing surfaces, capable of resisting long-term high hydraulic pressure and dynamic impact loads, fully adapting to heavy-duty industrial hydraulic equipment working requirements.
Corrosion and Rust Protection
304 and 316 stainless steel materials deliver outstanding oxidation resistance and corrosion resistance against moisture, hydraulic oil, steam, salt water, and industrial chemical media, ensuring stable performance in harsh indoor and outdoor environments.
Reliable Sealing Performance
Ultra-precision machined sealing faces control surface roughness within standard ranges, realizing uniform gasket compression, effectively avoiding fluid leakage, improving hydraulic system safety, and reducing long-term maintenance costs.
Accurate Hole Positioning & Assembly Stability
CNC precision drilling ensures consistent bolt hole spacing, verticality and position accuracy, realizing uniform bolt preload, avoiding assembly deviation, and improving overall structural stability during long-term operation.
Extended Service Life
Compared with ordinary carbon steel parts, stainless steel hydraulic flanges have stronger environmental adaptability and anti-aging performance, significantly reducing component replacement frequency and equipment failure downtime.
Strong Standard Compatibility & Customization
Most industrial hydraulic flange fittings conform to international hydraulic industry standards, compatible with mainstream pumps, valves, cylinders and manifold systems. Meanwhile, full custom processing is supported for special non-standard equipment projects.
4. Why CNC Machining Is Critical for Hydraulic Flange Fittings
The overall performance of hydraulic flange components depends entirely on machining precision. Traditional ordinary machining cannot meet the strict tolerance and surface finish requirements of high-pressure hydraulic parts. Professional CNC machining technology ensures zero-error repeatable quality from prototype trial production to mass delivery.
CNC Turning
Guarantees precise inner and outer diameter size, high concentricity, excellent cylindricity and smooth sealing surface finish, ensuring the tight fit and sealing effect of hydraulic matching parts.
CNC Milling
Processes ultra-flat flange sealing faces, eliminates deformation and unevenness, ensures complete fitting with gaskets, and fundamentally avoids high-pressure leakage risks.
Precision Drilling & Tapping
Accurately controls bolt hole diameter, bolt circle position, thread precision and hole verticality, ensuring uniform stress on the entire flange surface and stable assembly.
Professional Surface Treatment
Includes deburring, mechanical polishing, passivation and anti-corrosion coating, improving surface finish, corrosion resistance and sealing reliability.
As a professional custom hydraulic flange manufacturer, we support full-service customization: prototype sampling, small-batch trial production, OEM mass production, custom hydraulic valve sleeve processing, and various complex precision CNC hydraulic components manufacturing, fully meeting diverse industrial engineering needs.
5. Frequently Asked Questions
Q1: What materials are available for hydraulic flange fittings?
A: We mainly provide 304 stainless steel, 316 stainless steel, carbon steel and alloy steel options. Stainless steel is the preferred material for corrosion-resistant, high-hygiene and long-life industrial scenarios.
Q2: Can you produce custom hydraulic flanges per customer drawings?
A: Yes. We support full OEM customization according to customer drawings, CAD files, samples or technical specifications, including standard and non-standard industrial hydraulic flange fittings and hydraulic valve components.
Q3: What machining tolerances can you achieve?
A: We can achieve tight industrial tolerances on critical dimensions such as flange flatness, hole concentricity, bolt hole position accuracy and sealing surface finish. The specific standard is adjustable according to customer project requirements.
Q4: Do you provide quality inspection certificates?
A: Yes. We can provide material test reports (MTR), dimensional inspection reports and quality certification documents to support customer quality audit and product traceability.
Conclusion
Stainless steel hydraulic flange fittings are indispensable core components of high-pressure fluid control systems, widely used in hydraulic equipment, oil and gas facilities, industrial automation, chemical engineering, water treatment and food processing industries. Their excellent pressure resistance, corrosion resistance and leak-proof performance directly determine the stability and safety of industrial fluid systems.
High-quality CNC machined hydraulic flanges, stainless steel hydraulic valve parts and fluid control flange components rely on professional precision CNC manufacturing technology to achieve stable quality and long service life.
If you are searching for a reliable custom hydraulic flange manufacturer for OEM stainless steel hydraulic flanges, custom valve sleeves and OEM CNC machining hydraulic parts, feel free to contact our team for professional technical solutions and factory direct quotations.
